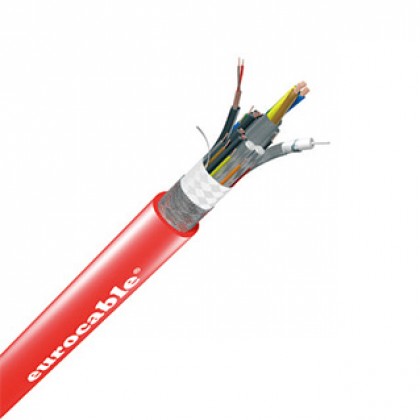

ELECTRICAL DATA

 D.C.R. at 20°C

 Conductor

 Audio: < 85 ohm/km - Video: < 60 ohm/km - Power: < 13.30 ohm/km

 Shield

 Capacitance

 CDR/CDR 1 KHz

 Audio: 100 pF/m - Video: 55 pF/m

 CDR/SDR 1KHz

 Nominal Impedance

 Audio: 530 ohm/100 m - Video: 75 ohm/100 m

 Attenuance db/100 m

 Audio: 0.20 at 1 KHz - Video: 7.5 at 50 MHz / 14.9 at 200 MHz /
 24.3 at 500 MHz / 31.2 at 800MHz

 Vel. of Prop.

 80%

 GENERAL DATA

 Cable

 O.D.

15.00 mm

 Standard reels

 200 m

 Weight

34.90 Kg/100 m

 Operating temperature

 -20° C/+70° C

 Jacket

 Material

 PVC TM2

 Nom. Thick.

1.40 mm

 Shield

 Material

 Audio: Red copper spiral shield - Video: Annealed tinned braid shield + Aluminium - Polyestere tape - Power: Annealed tinned copper double
spiral shield - Overall: Annealed tinned copper braid shield

 Coverage

 Audio: 100% - Video: 100% + > 85%
Power: 100% + 100% - Overall: > 85%

 Conductor

 Qty

 Audio: 2 - Video: 2 - Control: 6 - Power: 1

 Strand

 Audio: 28 x 0.10 mm - Video: 1 x 0.60 mm
Control: 28 x 0.10 mm - Power: 48 x 0.20 mm

 Area/AWG

 Audio: 0.22 mm2/24 - Video: 0.28 mm2/24
Control: 0.22 mm2/24 - Power: 1.50 mm2/16

 Insul. O.D.

 Audio: 1.05 mm - Video: 2.80 mm - Control: 1.15 mm - Power: 3.00 mm

 Material

 Audio, Video and Control: Annealed bare copper polyolefine insulated
Power: Annealed bare copper PVC R2 insulated
