ELECTRICAL DATA

 D.C.R. at 20°C

 ≤ 78 ohm/km

 ≤ 20 ohm/km

  Capacitance

 25 pF/m

 80 pF/m

 Nominal Impedance 1 KHz

 110 ohm/100 m (55 Quad. com.)

 Attenuance 1 KHz

 3.80 - 6.70 db/100 m

 Inductance

 -

 GENERAL DATA

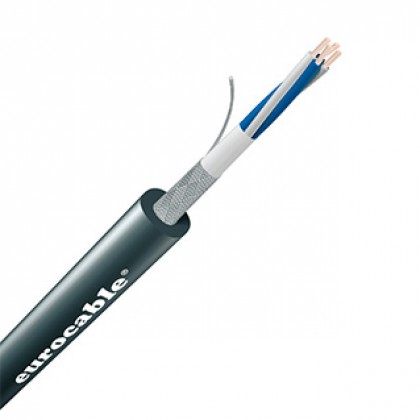

Cable

 7.00 m

 100 m

 6.00 Kg/100 m

 Operating temperature

 Fixed installation -20°C/+70°C
 Mobile installation 5°C/+70°C

 Jacket

 Material

 PVC

 Nom. Thick.

 1.40 mm

 Shield (double)

 Material

 Tinned copper braid shield plus 24 AWG
 tinned copper drain wire

 Coverage

 > 90%

 Conductor

 Qty

 4

 Strand

 30 x 0.10 mm

 Area/AWG

 0.22 mm2/24

 Insul. O.D.

 1.40 mm

 Material

 Bare copper foamed polyethylene insulated
