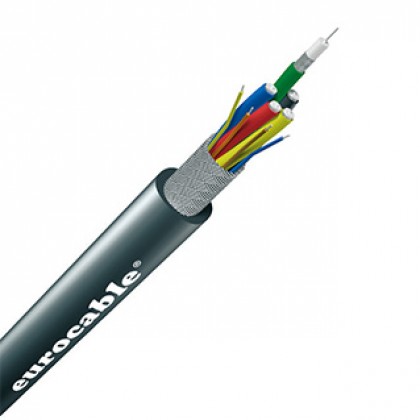

Purposely manufactured for SVGA applications, this cable is composed of four conductors for SVGA control and five 75 ohm coax cables for the video signals.

ELECTRICAL DATA
Description		Multicoaxial 5 x 75 ohm + 4 x 26 AWG SVGA
D.C.R. at 20°C	Conductor	Control: < 143 ohm/km
	Shield	-
Capacitance		Coax: 58 pF/m
Nominal Impedance		Coax: 75 ohm
Attenuance	5 MHz	Coax: < 2.40 db/100 m
	10 MHz20 MHz50 MHz 100 MHz	Coax: < 7.50 db/100 m
Vel. of Prop.		80%
GENERAL DATA
Cable	O.D.	9.30 mm
	Standard reels	500 m
	Weight	13.50 Kg/100 m
	Operating temperature	-20°C/+70°C
Jacket	Material	PVC
	Nom. Thick.	1.00 mm
Shield	Material	Coax: Tinned copper braid Overall: Tinned copper braid
	Coverage	95% - 85%
Conductor	Qty	5 Coax - 4 Control
	Strand	1 x 0.35 -7 Control
	Area/AWG	Coax: 0.096 mm2/27 - Control: 0.14 mm2/26
	Dielectric O.D.	Coax: 2.50 mm - Control: 0.90 mm
	Material	Coax: Solid tinned copper polypropylene insulated Control: Tinned copper PVC insulated
