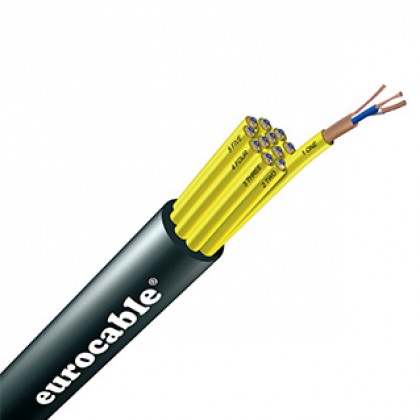

ELECTRICAL DATA

 D.C.R. at 20°C

 Conductor

 85 ohm/km

 Shield

 40 ohm/km

 Capacitance

 CDR/CDR 1 KHz

 100 pF/m

 CDR/SDR 1 KHz

 180 pF/m

 Nominal Impedance 1 KHz

 530 ohm/100 m

 Attenuance 1 KHz

 0.20 db/100 m

 Induttance

 70 μH/100 m

 GENERAL DATA

 Pairs cable

 20

 24

 28

 32

 40

 48

 Cable

 O.D.

 18.9 mm

 20.3 mm

 21.6 mm

 23.2 mm

 25.4 mm

 27.8 mm

 Standard reels

 200 m

 Weight Kg/100 m

 60.50

 67.90

 73.60

 86.80

 106.70

 123.20

 Operating temperature

 -20° C/+70° C

 Jacket

 Material

 PVC

 Nom. Thick.

 2.05 mm

 2.25 mm

 2.45 mm

 Shield

 Material

 Bare copper,
 Spiral shield plus 24 AWG tinned copper drain wire

 Coverage

 > 95%

 Conductor

 Qty

 20 x 2

 24 x 2

 28 x 2

 32 x 2

 40 x 2

 48 x 2

 Strand

 28 x 0.10 mm

 Area/AWG

 0.22 mm2/24

 Insul. O.D.

 1.00 mm

 Material

 Annealed bare copper. XLPE insulated
