ELECTRICAL DATA

 D.C.R. at 20°C

 85 ohm/km

 30 ohm/km

  Capacitance

 140 pF/m

 250 pF/m

 Nominal Impedance 1 KHz

 500 ohm/100 m

 Attenuance 1 KHz

 0.24 db/100 m

 Inductance

 70 μH/100 m

 GENERAL DATA

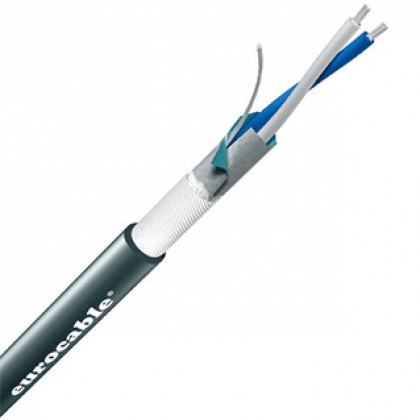

Cable

 3.50 mm

 500 m

 2.30 Kg/100 m

 Operating temperature

 -20°C/+80°C

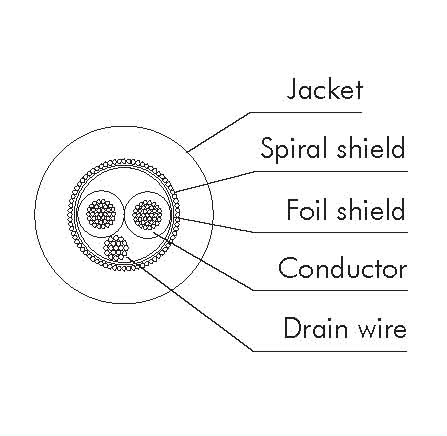

 Jacket

 Material

 Low smoke emission technopolymer

 Nom. Thick.

 0.50 mm

 Shield (double)

 Material

 First: Aluminium - Polyester tape Second: tinned copper spiral shield

 Coverage

 First: 100% - Second: 95%

 Conductor

 Qty

 Strand

 28 x 0.10 mm

 Area/AWG

 Insul. O.D.

 1.00 mm

 Material

 Annealed bare copper polyolefine insulated
