ELECTRICAL DATA

 D.C.R. at 20°C

 Conductor

35 ohm/km

 Shield

10 ohm/km

 Capacitance

-

 Nominal Impedance

75 ohm

 Attenuance db/100 m - MHz

5.7 at 50 / 11.1 at 200 / 17.5 at 470 / 24.0 at 860 / 26.2 at 1000 / 31.2 at 1350 / 33.5 at 1750 / 40.0 at 2250 / 48.0 at 3000

 Vel. of Prop.

80%

 GENERAL DATA

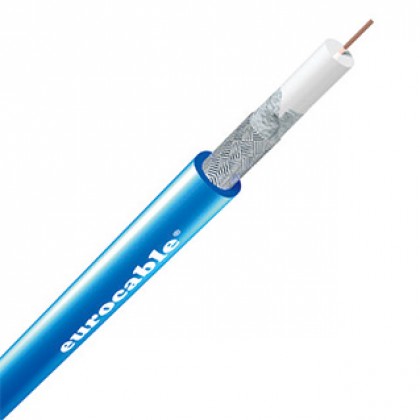

 Cable

6.00 mm

1000 m

5.26 Kg/100 m

-30°C/+70°C

 Jacket

Low smoke emission PVC

0.80 mm
