ELECTRICAL DATA

 D.C.R. at 20°C

 ≤ 78 ohm/km

 ≤ 39 ohm/km

  Capacitance

 160 pF/m

 80 pF/m

 Nominal Impedance 1 KHz

 450 ohm/100 m

 Attenuance 1 KHz

 0.50 db/100 m

 Inductance

 < 58 μH/100 m

 GENERAL DATA

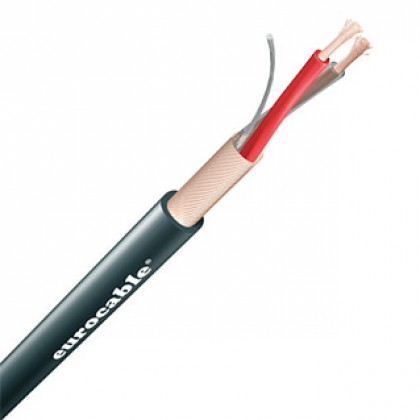

Cable

 4.50 mm

 200 m

 2.80 Kg/100 m

 Operating temperature

 -5°C/+70°C

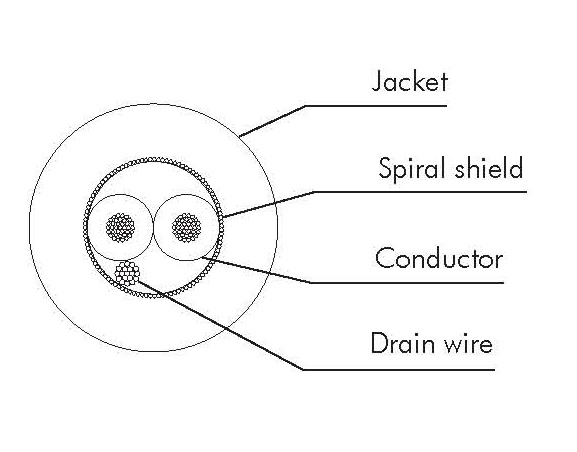

 Jacket

 Material

 PVC

 Color

 Black, Blue, Grey, Red, Green, Yellow

 Shield (double)

 Material

 Bare copper, Spiral shield plus 20 AWG tinned copper drain wire

 Coverage

 100%

 Conductor

 Qty

 2

 Strand

 30 x 0.10 mm

 Area/AWG

 0.22 mm2/24

 Insul. O.D.

 1.10 mm

 Material

 Bare copper polyethylene insulated
