ELECTRICAL DATA

 D.C.R. at 20°C

 Conductor

8.2 ohm/km

 Shield

8 ohm/km

 Capacitance

53 pF/m

 Nominal Impedance

75 ohm

 Attenuance db/100 m - MHz

0.8 at 5 / 2.8 at 50 / 4.0 at 200 / 8.9 at 470 / 12.1 at 800 / 13.5 at 1000 / 17.4 at 1500 / 21.1 at 2150 / 24.0 at 2750 /25.4 at 3000

 Vel. of Prop.

84%

 GENERAL DATA

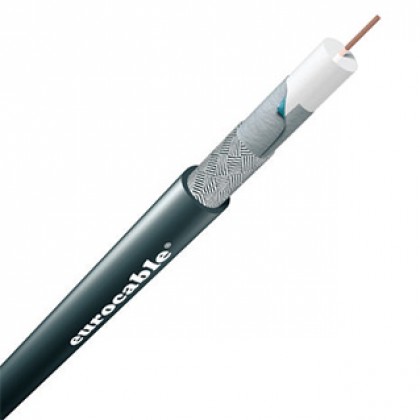

 Cable

10.10 mm

500 m

9.06 Kg/100 m

-30°C/+70°C

 Jacket

LSZH Thermoplastic

1.10 mm
