ELECTRICAL DATA

 D.C.R. at 20°C

 ≤ 130 ohm/km

 ≤ 25 ohm/km

  Capacitance

 ≤ 40 pF/m

 ≤ 80 pF/m

 Nominal Impedance 1 KHz

 110 ohm/100 m

 Attenuance 1 KHz

 5.90 - 8.80 db/100 m

 Inductance

 80%

 GENERAL DATA

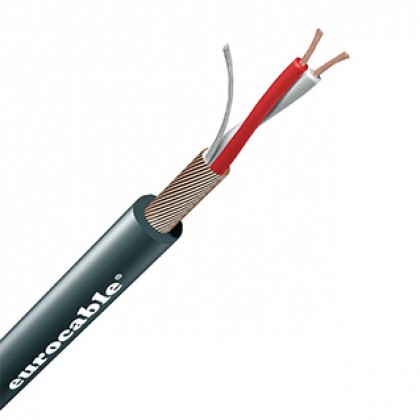

Cable

 4.50 mm

 100 m

 2.60 Kg/100 m

 Operating temperature

 -20°C/+70°C

 Jacket

 Material

 PVC

 Nom. Thick.

 0.60 mm

 Shield (double)

 Material

 Bare copper spiral shield

 Coverage

 90%

 Conductor

 Qty

 2

 Strand

 18 x 0.10 mm

 Area/AWG

 0.14 mm2/26

 Insul. O.D.

 1.50 mm

 Material

 Bare copper foamed polyethylene insulated
