ELECTRICAL DATA

 D.C.R. at 20°C

 ≤ 78 ohm/km

 ≤ 50 ohm/km

  Capacitance

  -

 130 pF/m

 Nominal Impedance 1 KHz

 360 ohm/100 m

 Attenuance 1 KHz

 0.25 db/100 m

 Inductance

 < 16 μH/100 m

 GENERAL DATA

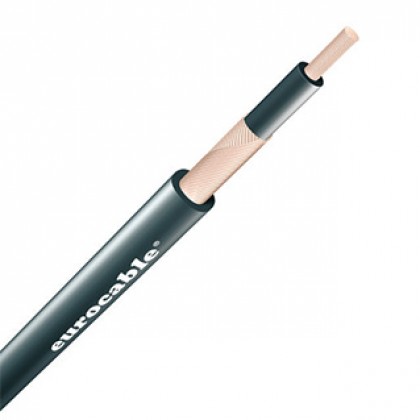

 Cable

 6.00 mm

 100 m

 3.50 Kg/100 m

 Operating temperature

 -5°C/+70°C

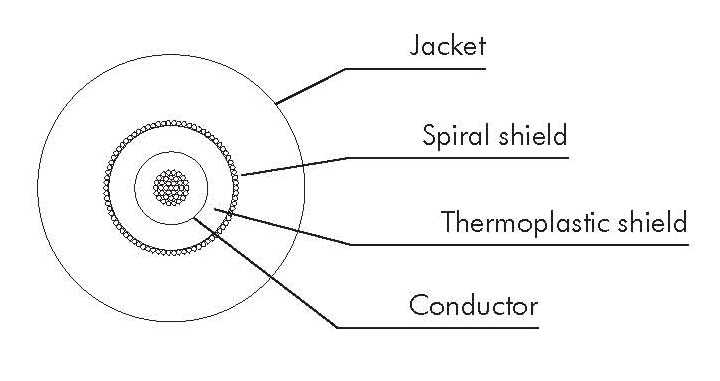

 Jacket

 Material

 PVC

 Nom. Thick.

 1.7 mm

 Shield (double)

 Material

 First: Conductive graphite - Second: Spiral bare copper shield

 Coverage

 First: 100% - Second: 95%

 Conductor

 Qty

 1

 Strand

 30 x 0.10 mm

 Area/AWG

 0.22 mm2/24

 Insul. O.D.

 1.70 mm

 Material

 Bare copper polyethylene insulated
