라이브공연장, 녹음스튜디오, 방송국, 연극이나 뮤지컬, 각종 전문 프로그램 및 종교시설 등 각 영역을 모두 커버 할 수 있는 다양한 제품군으로 하이엔드 마이크로폰 업계의 절대적 강자로 인정받는 제품 입니다. 1992년 덴마크에서 설립된 DPA의 역사는 최고의 측정장비회사 Bruel & Kja r사로 지금도 전세계 측정장비의 표준으로 사용되는 제품들을 생산하고 있습니다. DPA는1992년 Bruel&Kja r 에서 오디오파트를 분리하여 독립적으로 제품을 생산하기 시작했습니다. DPA는 기존제품과 함께 Miniature Microphone 시장에도 진출하여 기존의 기술력을 바탕으로 우수한 제품을 생산, 공급하였고 모든 나라에서 하이엔드급 제품의 표준으로 사용되고 있습니다.

d:dicate™ APE40RS Acoustic Pressure Equalizer, 40 mm Ball for 4006A and 4006C

LA4X

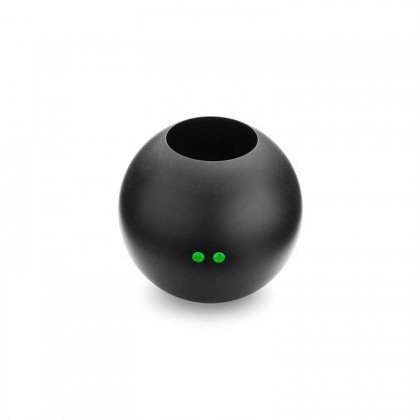

The APE40 is a Ø40 mm sphere shaped Acoustic Pressure Equalizer, designed for use with the Reference Standard Microphone 4006A or the ST4006A stereo kit. For use with the compact 4006C, the microphone must be either hung or placed in the clip with an XLR connector plugged in.

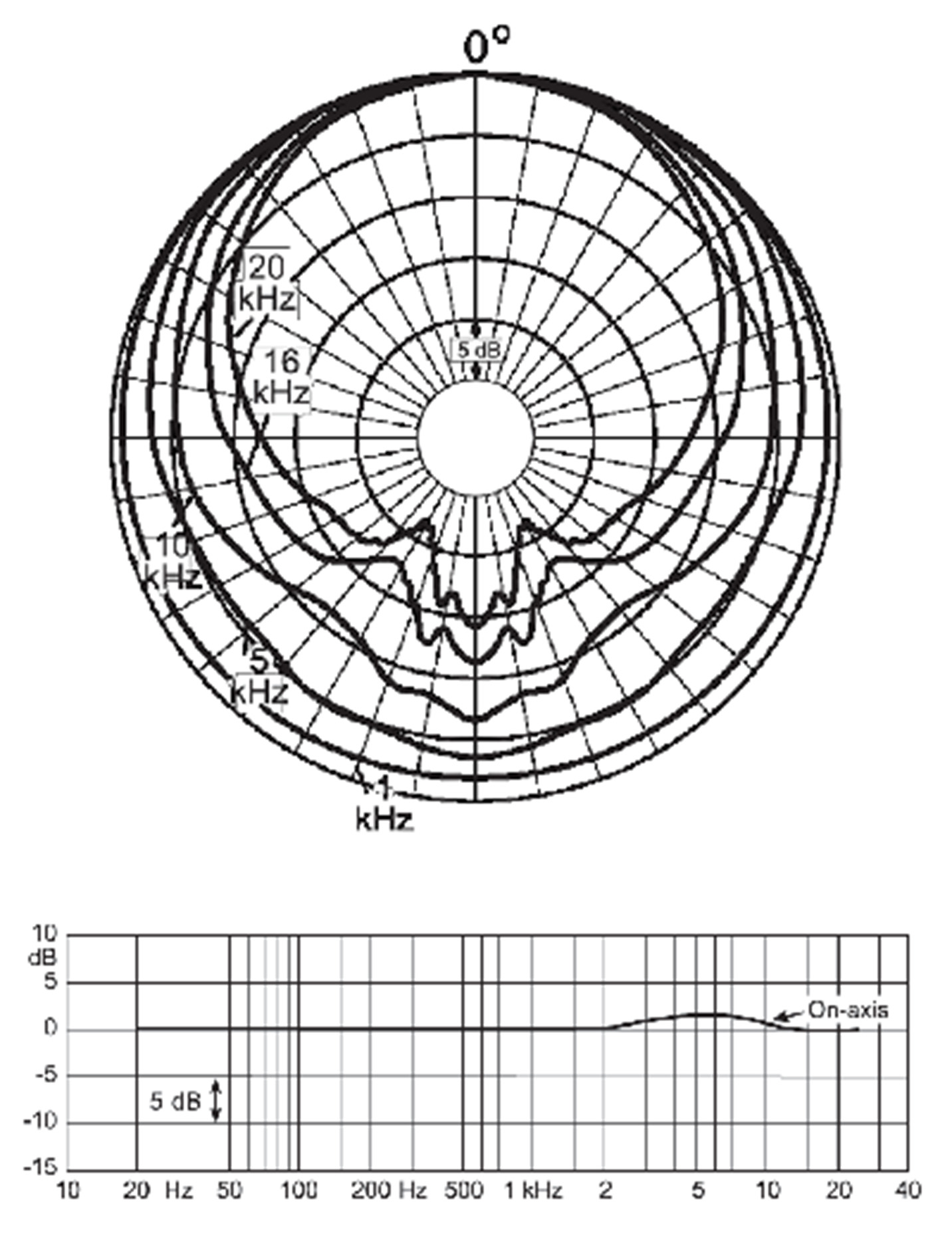

It offers a more noticeable on-axis boost between 2 and 8 kHz, and stronger off-axis attenuation than the APE30. This gives a marked increase in the directivity of your recordings (at 4 kHz, the front-to-back sensitivity ratio is 8 dB), and decreases the effects of reverberation and off-axis sources.

When using APE40, you can modify the spectral characteristic of a source by simply altering the angle of incidence to give a frequency boost, a flat response or attenuation.

This accessory substitutes the former L40B, suitable for 4003, 4006, 4006-TL and their stereo kits. The L40B cannot be used with the modular series 4006A or 4006C and vice versa.

More on acoustic modification
The Acoustic Pressure Equalizers ? APEs ? are passive acoustic processors functioning as both spatial and spectral modifiers. They use diffractions on the surface to modify the sound field near the microphone diaphragm. This technique is only possible on omnidirectional pressure microphones.

Two primary changes occur:
1. An upper-midrange/high frequency boost (without changing the low end) due to the pressure build-up at certain frequencies depending on the element’s size.
2. More directionality at higher frequencies (focus).

A presence (upper-midrange) lift is often desirable in rhythmical genres, to make a voice or an instrument cut through a mix or simply to make it more intelligible or well defined. For symphonic music, the frequency response of certain legendary vintage types of microphones can be obtained using one of the APEs. However, you will achieve a much higher degree of naturalness and detail when using a precision handcrafted 4006A.
