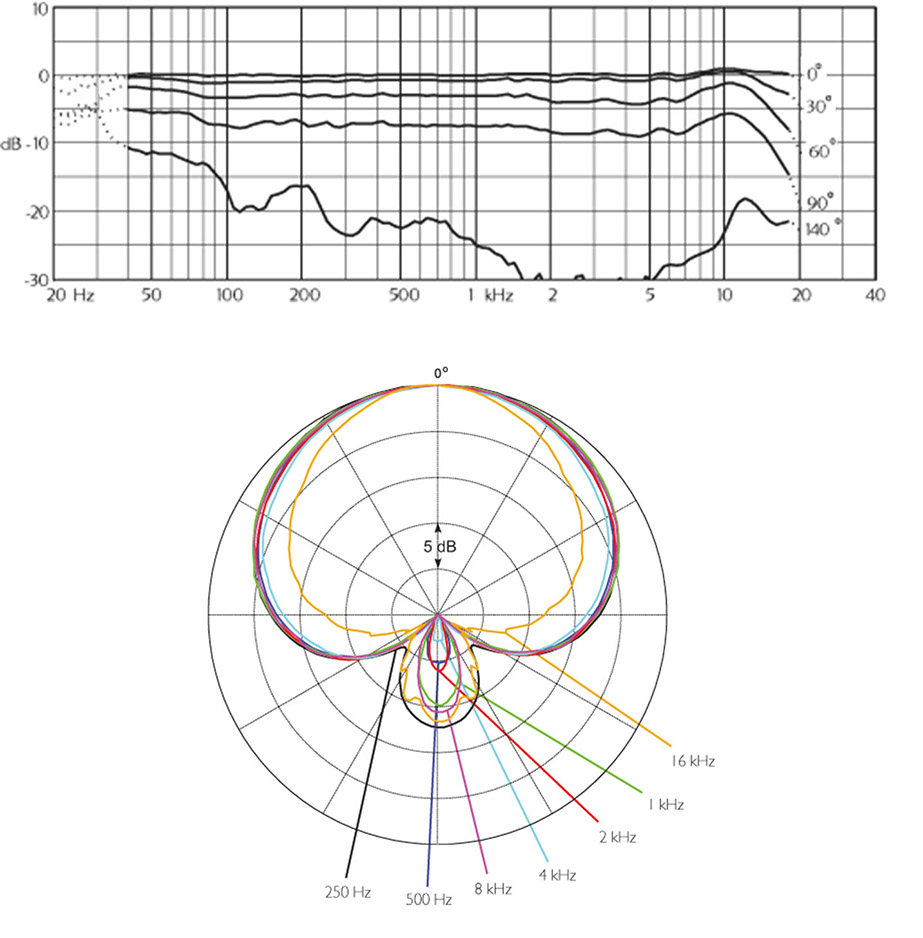

Directional pattern

 Supercardioid

 Principle of operation

 Pre-polarized condenser

 Cartridge type

 Pre-polarized condenser

 Frequency range

 20 Hz - 20 kHz

 Frequency range, ± 2 dB, at 30 cm

 40 Hz - 18 kHz

 Sensitivity, nominal, ± 2 dB at 1 kHz

 12 mV/Pa

 Equivalent noise level, A-weighted

 Typ. 16 dB(A) re. 20 μPa (max. 19 dB)

 Equivalent noise level, ITU-R BS.468-4

 -

 Total Harmonic Distortion (THD)

 < 1 % up to 133 dB SPL peak

 S/N ratio (A-weighted), re.

 1 kHz at 1 Pa (94 dB SPL)

 Typ. 78 dB(A)

 Dynamic range

 Typ. 123 dB

 Max. SPL, peak before clipping

 157 dB

 Switchable attenuator, filters etc

 0 dB / -20 dB

 Output impedance

 200 Ω

 Minimum load impedance

 >2 kΩ

 Cable drive capability

 100 m (328 ft)

 Output balance principle

 Impedance balancing with Active Drive

 Common Mode Rejection Ratio (CMRR)

 > 60 dB

 Power supply (for full specifications)

 48 V Phantom power (±4 V)

 Current consumption

 2.8 mA

 Connector

 XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

 Color

 Matte black

 Weight

 158 g (5.6 oz)

 Microphone diameter

 19 mm (0.75 in)

 Capsule diameter

 19 mm (0.75 in)

 Polarity

 +V at Pin 2 for positive sound pressure

 Temperature range

 -40 C to 45 C (14 F to 113 F)

 Relative Humidity (RH)

 Up to 90 %

 Matching tolerance

 ± 1 dB

 Phase deviation for kit

 < 10
