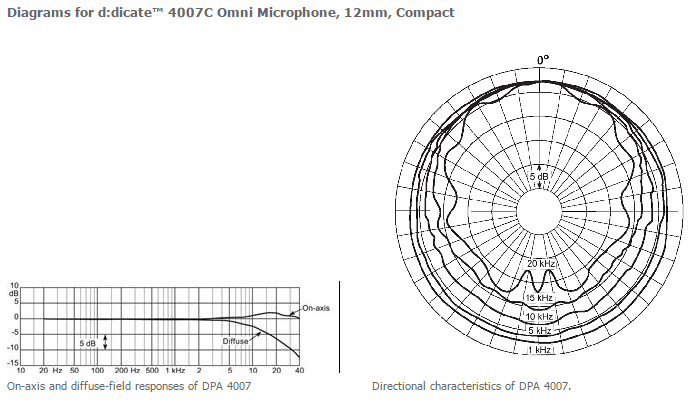

Directional characteristics

 Omnidirectional

 Principle of operation

 Pressure

 Cartridge type

 Pre-polarized condenser

 Frequency range

 10 Hz - 40 kHz

 Frequency range, ± 2 dB

 20 Hz - 40 kHz

 Sensitivity, nominal +/- 2 dB at 250 Hz

 9 mV/Pa; -40 dB re. 1 V/Pa

 Equivalent noise level, A-weighted

 Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))

 Equivalent noise level, ITU-R BS.468-4

 Typ. 36 dB (max. 38 dB)

 S/N ratio (A-weighted), re.

 1 kHz at 1 Pa (94 dB SPL)

 Typ. 70 dB(A

 Total Harmonic Distortion (THD)

 < 0.5 % up to 142 dB SPL peak

 Total Harmonic Distortion (THD)

 < 1 % up to 148 dB SPL peak

 Dynamic range

 Typ. 124 dB

 Max. SPL, peak before clipping

 153 dB

 Output impedance

 100 Ω

 Cable drive capability

 100 m (328 ft)

 Output balance principle

 Impedance balancing with Active Drive

 Common Mode Rejection Ratio (CMRR)

 > 50 dB

 Power supply

 48 V Phantom power (±- 4 V)

 Current consumption

 2.8 mA

 Connector

 XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

 Color

 Matte black

 Weight

 63 g (2.2 oz)

 Microphone diameter

 12 - 19 mm (0.47 - 0.75 in)

 Capsule diameter

 12 mm (0.47 in)

 Microphone length

 64 mm (2.5 in)

 Maximum output voltage

 4.5 V

 Polarity

 +V at pin 2 for positive sound pressure

 Temperature range

 -40 °C to 50 °C (-40 °F to 122 °F)

 Relative Humidity (RH)

 Up to 90%

 Matching tolerance

 (frequency response and sensitivity)

 ± 0.5 dB

 Phase deviation for kit

 < 5°
