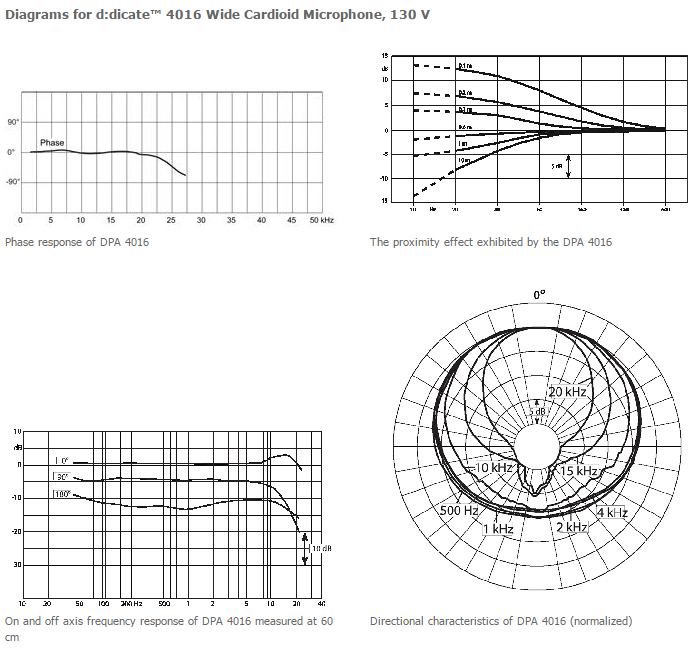

Directional characteristics

 Wide Cardioid

 Principle of operation

 Pressure gradient

 Cartridge type

 19 mm (0.75 in) pre-polarized condenser

 Frequency range, ± 2 dB:

 On-axis: 40 Hz to 20 kHz +3/-2 dB in 60 cm distance with a max.

 3 dB soft boost at 10 ? 15 kHz

 Sensitivity, nominal, ±2 dB

 12 mV/Pa; -38 dB re 1 V/Pa

 Equivalent noise level A-weighted

 Typ. 19 dB(A) re. 20 μPa (max. 20 dB(A))

 Equiv. noise level ITU-R BS.468-4

 Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)

 Total harmonic distortion (THD)

 <0.5% up to 110 dB SPL peak, <1% up to 116 dB SPL peak

 Dynamic range

 Typ. 97 dB

 Max. SPL, peak before clipping

 With external power supply: 168 dB SPL peak

 Output impedance

 Matches power supply input

 Cable drive capability

 From microphone to external power supply: Up to 20 m (66 ft).

 From external power supply: Up to 300 m (984 ft)

 Power supply

 130 V via external power supply

 Connector

 4-pin modified XLR-M (High Voltage)

 Weight

 165 g (5.8 oz)

 Capsule diameter

 19 mm (0.75)

 Length

 175 mm

 Operating temperature range

 -40 to +55°C (-40 to 131°F)
