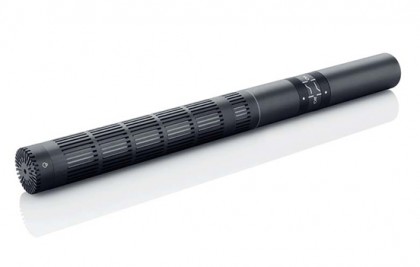

Equipped with a highly directional supercardioid pickup pattern, obtained using a supercardioid design with an interference tube that provides excellent off-axis rejection, the DPA 4017B is a short and exceptionally lightweight shotgun microphone that truly measures up to DPA’s impressive reputation for accuracy, clarity, and musicality. Designed for a broad range of applications, the phantom powered 4017B is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast/ENG/film booming, and even studio recording environments.

​

Tune out the surroundings
Extensive research and development has been undertaken to optimize the sound coming from the sides and behind the microphone. Minimizing the often very un-linear response of a shotgun microphone due to its side lobes is one of the key accomplishments of the 4017B. The condenser capsule uses a high voltage pre-polarized back plate, endowing the shotgun with high output as well as wide dynamics, extremely low noise and distortion specifications.

Small size, big performance

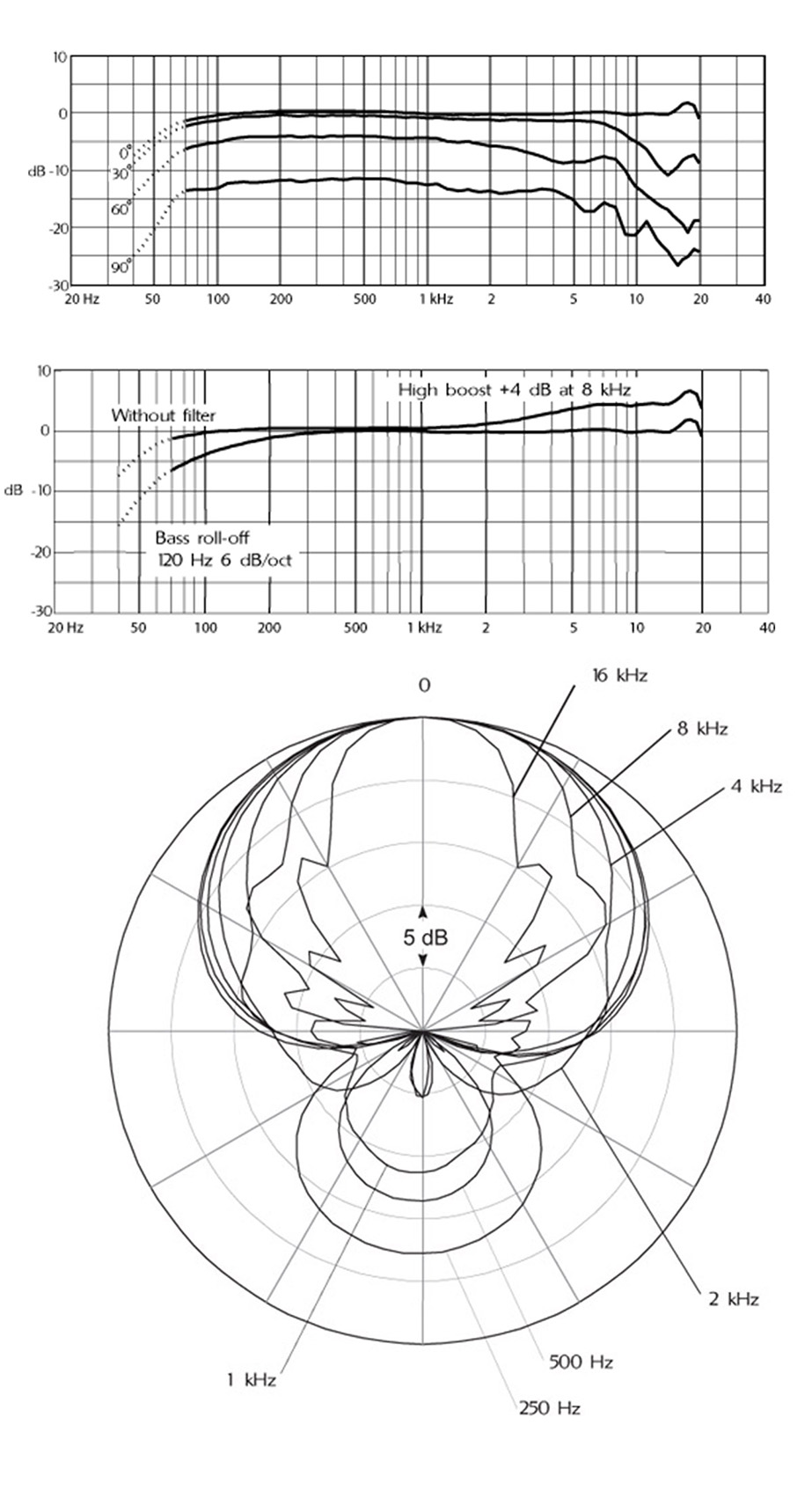

At just 210 mm (8.3 in.) in length and 71 g (2.5 oz) in weight, the aluminum-bodied DPA 4017B is among the smallest and lightest boom microphones available. But that’s not to say that it’s small on performance. Fully immune to RF emission, the 4017B’s 19 mm (0.75 in.) condenser cartridge is capable of handling peak SPLs of 132 dB before clipping, and has a wide dynamic range of 117 dB across a flat frequency response of 70 Hz - 20 kHz (±2 dB in 60 cm distance).

• ddicate-4017B.pdf
