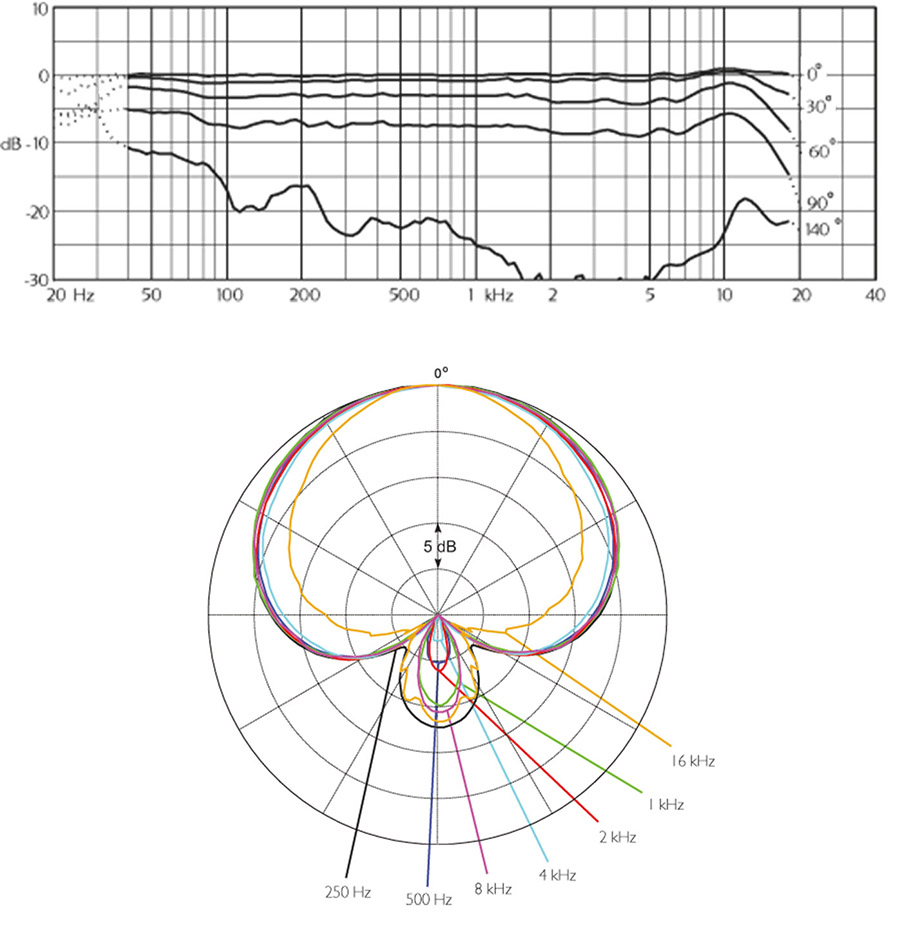

Directional pattern

 Supercardioid

 Principle of operation

 Pressure gradient

 Cartridge type

 Pre-polarized condenser

 Frequency range

 20 Hz - 20 kHz

 Frequency range, ± 2 dB, at 30 cm

 40 Hz - 18 kHz

 Sensitivity, nominal, ± 2 dB at 1 kHz

 12 mV/Pa

 Equivalent noise level, A-weighted

 Typ. 16 dB(A) re. 20 μPa (max. 19 dB)

 Equivalent noise level, ITU-R BS.468-4

 -

 S/N ratio (A-weighted), re.

 1 kHz at 1 Pa (94 dB SPL)

 Typ. 78 dB(A)

 Dynamic range

 Typ. 123 dB

 Total Harmonic Distortion (THD)

 < 1 % up to 139 dB SPL peak

 Dynamic range

 Typ. 123 dB

 Max. SPL, peak before clipping

 142 dB

 Output impedance

 100 Ω

 Minimum load impedance

 2 kΩ

 Cable drive capability

 100 m (328 ft)

 Power supply (for full specifications)

 48 V Phantom power (± 4 V)

 Current consumption

 2.8 mA

 Output balance principle

 Impedance balancing

 Common Mode Rejection Ratio (CMRR)

 > 40 dB

 Power supply (for full specifications)

 48 V Phantom power (± 4 V)

 Current consumption

 3.5 mA

 Connector

 XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

 Color

 Matte black

 Weight

 109 g (3.8 oz)

 Microphone diameter

 19 mm (0.75 in)

 Capsule diameter

 19 mm (0.75 in)

 Microphone length

 35 mm (1.38 in)

 Output voltage, RMS

 2.2 V

 Polarity

 +V at pin 2 for positive sound pressure

 Temperature range

 -40 °C to 45 °C (-40 °F to 113 °F)

 Relative Humidity (RH)

 Up to 90%

 Matching tolerance

 ± 1 dB

 Phase deviation for kit

 < 10°
