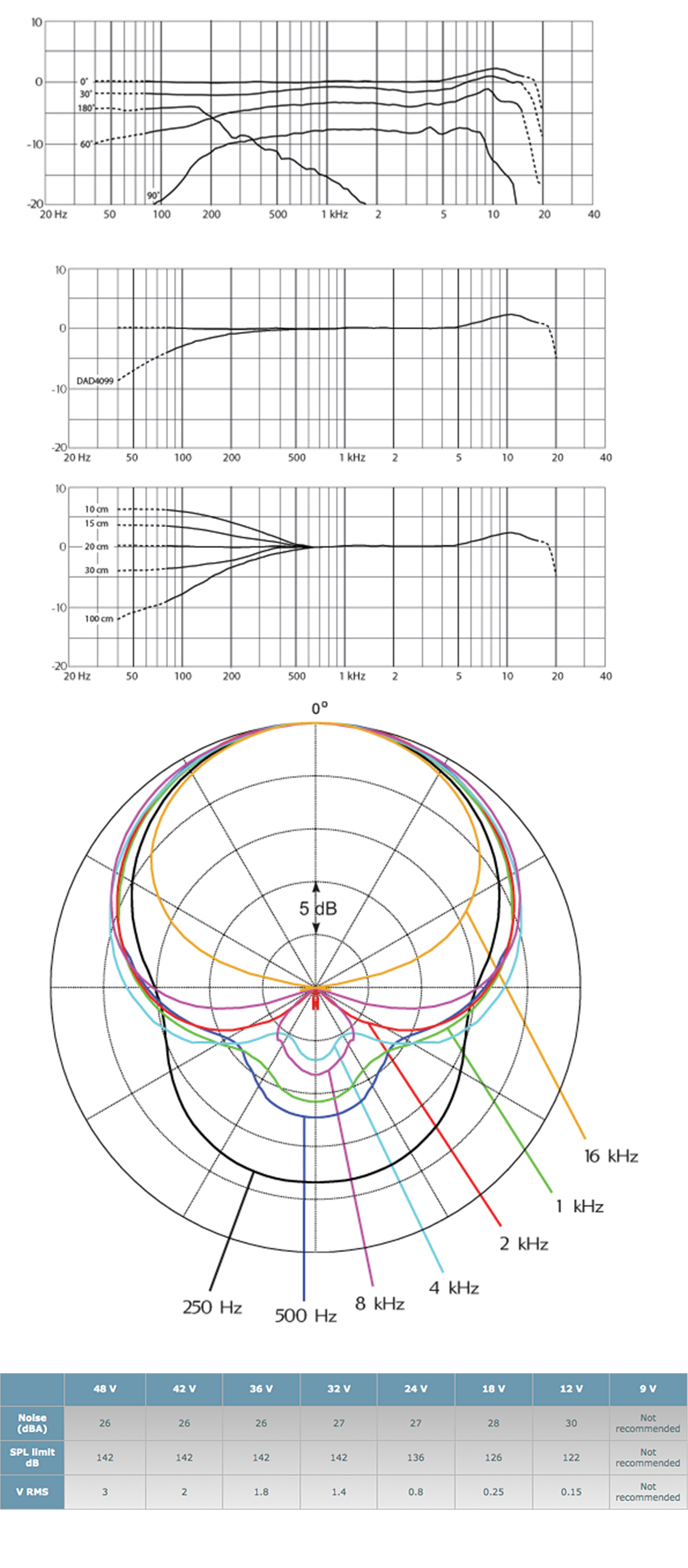

Directional characteristics | Supercardioid |
Principle of operation | Pressure gradient |
Cartridge type | Pre-polarized condenser |
Frequency range | 20 Hz to 20 kHz |
Frequency range, ± 2 dB, 20 cm (7.9 in) distance | 80 Hz to 15 kHz with 3 dB diffuse field boost at 8 to 15 kHz |
Sensitivity, nominal ± 3 dB at 1 kHz | 20 mV/Pa; -34 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | 71 dB(A) |
Total harmonic distortion (THD) | <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine |
Dynamic range | Typ. 100 dB |
Max. SPL, peak before clipping | 134 dB |
Output impedance | From Microdot: 30 to 40 ohm; from DAD6001: 100 ohm |
Cable drive capability | Up to 300 m (984 ft) with DAD6001 XLR adapter |
Output balance principle | Signal balanced with DAD6001 XLR adapter |
Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001 XLR adapter |
Power supply (for full performance) | For wireless systems: Min. 5 V ? max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V |
Current consumption | 1.5 mA. 3.5 mA with DAD6001 XLR adapter |
Connector | MicroDot; 3 pin XLR-M from DAD6001 XLR adapter |

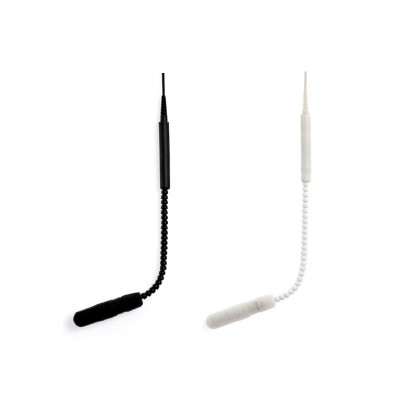

Color | Black (4098HB) or white (4098HW) |
Microphone weight | 5 g (0.18 oz) |
Microphone diameter | 10 mm (0.39 in) |
Capsule diameter | 5.4 mm (0.2 in) |
Microphone length | 154 mm (6.1 in) |
Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Temperature range | -40 °C to 45 °C (-40 °F to 113 °F) |
Relative humidity | Up to 90 % |
Gooseneck length | 95 mm (3.7 in) |
