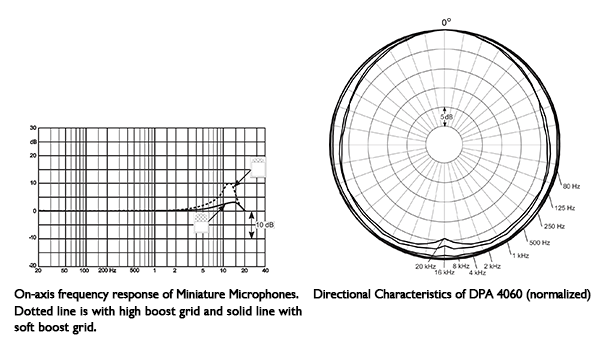

Directional chacteristics

 Omnidirectional

 Principle of operation

 Pressure

 Cartridge type

 Pre-polarized condenser element with vertical diaphragm

 Frequency range, ± 2 dB

 Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz,

 High boost grid: 20Hz - 20kHz, 10 dB boost at 12 kHz.

 Sensitivity, nominal, ±3 dB at 1 kHz

 20 mV/Pa; -34 dB re. 1 V/Pa

 Equivalent noise level A-weighted

 Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

 Equiv. noise level ITU-R BS.468-4

 Typ. 35 dB (max. 38 dB)

 S/N ratio, (A-weighted),re.

 1kHz at 1 Pa (94 dB SPL)

 71 dB(A)

 Total harmonic distortion (THD)

 < < 1% THD up to 123 dB SPL peak;

 < 1 % THD up to 120 dB SPL RMS sine

 Dynamic range

 Typ. 100 dB

 Max. SPL, peak before clipping

 134 dB

 Output impedance

 30 - 40 ohm

 Cable drive capability

 Up to 300 m (984 ft)

 Power supply

 For wireless For wireless systems: Min. 5 V - max.

 50 V through DPA adapter. With DAD6001-BC/DAD6024/

 DAD4099: 48 V phantom power ±4 V for full performance.

 Connector

 MicroDot

 Color

 Black, beige

 Microphone weight

 7.5 g (0.26 oz) incl. cable and MicroDot connector

 Microphone diameter

 5.4 mm (0.2 in)

 Microphone length

 12.7 mm (0.5 in)

 Cable length

 1.8 m (6 ft)

 Polarity

 Positively increasing sound pressure produces positive going voltage on MicroDot pin

 Temperature range

 -45°C to 45 °C

 Relative Humidity (RH)

 Up to 90%
