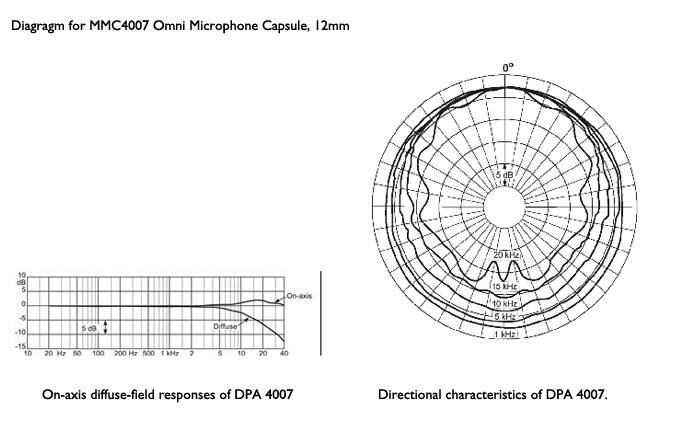

Directional characteristics

 Omnidirectional

 Principle of operation

 Pressure

 Cartridge type

 Pre-polarized condenser

 Frequency range

 10 Hz - 40 kHz

 Frequency range, ± 2 dB

 10 Hz - 40 kHz

 Sensitivity, nominal, ±2 dB at 250 Hz

 9 mV/Pa; -40 dB re. 1 V/Pa

 Equivalent noise level, A-weighted

 Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))

 Equivalent noise level, ITU-R BS.468-4

 Typ. 36 dB (max. 38 dB)

 S/N ratio (A-weighted), re.

1 kHz at 1 Pa (94 dB SPL)

 Typ. 70 dB(A)

 Color

 Matte black

 Weight

 23 g (0.8 oz)

 Diameter

 12-19 mm (0.47-0.75 in)

 Capsule size

 16 mm (0.6 in)

 Length

 23 mm (0.9 in)

 Temperature range

 -40 °C to 45 °C (-40 °F to 113 °F)

 Relative Humidity (RH)

 Up to 90%

 Matching tolerance

(frequency response and sensitivity)

 +/- 0.5 dB

 Phase deviation for kit

 < 5°
