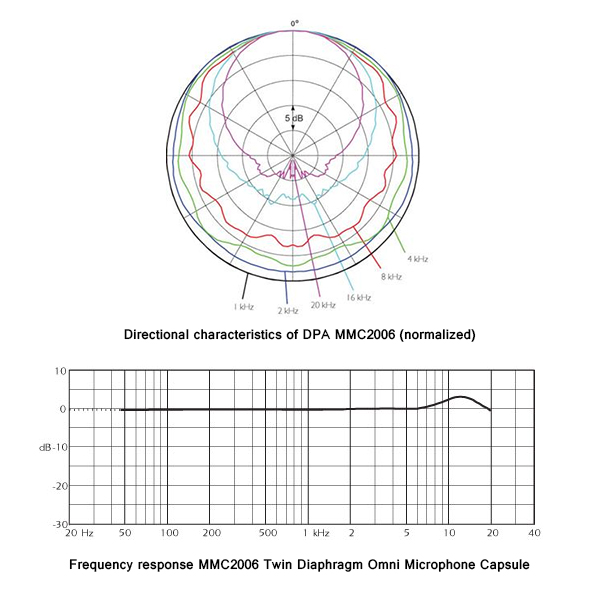

Directional pattern

 Omnidirectional

 Principle of operation

 Pressure

 Cartridge type

 Pre-polarized condenser

 Frequency range

 20 Hz - 20 kHz

 Frequency range, ± 2 dB

 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz.

 Sensitivity, nominal, ± 2 dB at 1 kHz

 6 mV/Pa; -44 dB re. 1 V/Pa

 Equivalent noise level, A-weighted

 Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))

 Equivalent noise level, ITU-R BS.468-4

 Equivalent noise level, ITU-R BS.468-4 Typ. 28 dB (max. 30 dB)

 S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

 Typ. 75 dB(A)

 Total Harmonic Distortion (THD)

 < 1 % up to 130 dB SPL peak

 Dynamic range

 Typ. 114 dB

 Max. SPL, peak before clipping

 N/A

 Switchable attenuator, filters etc

 N/A

 Output impedance

 N/A

 Minimum load impedance

 N/A

 Cable drive capability

 N/A

 Output balance principle

 N/A

 Common Mode Rejection Ratio (CMRR)

 N/A

 Power supply (for full specifications)

 N/A

 Current consumption

 N/A

 Connector

 N/A

 Color

 Matte black

 Microphone diameter

 52 mm (2.05 in)

 Capsule diameter

 19 mm (0.75 in)

 Difference frequency distortion

 N/A

 Temperature coefficient

 N/A

 Influence of static pressure

 N/A

 Influence of vibration

 N/A

 Temperature range

 -40 °C to 45 °C (-40 °F to 113 °F)

 Relative Humidity (RH)

 Up to 90%
