JUNE 9, 2014 RELEASE:

LA NETWORK MANAGER 2.2.1.0

Multi-touch support on compatible touch screens

Automatic display optimization on very high resolution screens

When a Preset of a version prior to version 3.0 is detected on a Unit:

A Preset Version warning message is displayed

The IP addresses of the Virtual Units are displayed as an orange label on the Unit object within the Workspace

In the Unit Matcher, the Virtual Units are highlighted in yellow

Possibility to keep the user parameters of the current Preset when loading another Preset: Mute, Gain, Delay, Polarity and Routing

Preset Bank Builder: a Bank can be dragged and dropped to the design area and the Preset Inspector can be used to inspect the Presets of the Bank

Notification in Windows® Task Bar in case of Major or Critical events

Quick access to load Session from Windows® Task Bar when LA NWM is already running

Numerous network engine improvements: faster Firmware updates, better management of Restore Session, hot-plug detection, reconnection of disconnected units…

New VIDEO TUTORIAL 5.0

Includes PRESET LIBRARY 4.2

Other improvements and bug fixes: refer to the full release pack README file

LA4/LA8 FIRMWARE 2.1.3.3 and LA4X FIRMWARE 1.0.3.3

Includes PRESET LIBRARY 4.2

STORE PRESET function proposes current Preset index as destination slot, if current Preset is between 001 and 010

Modified error message: “LCOM Error” changed to “Invalid L-NET Client” in case an incompatible remote control software tries to connect to the Unit, typically LA NWM 2.1.0.1 or older

Other improvements and bug fixes: refer to the full release pack README file

PRESET LIBRARY 4.2

Improved presets:

[ARCS_II]: optimized limiter settings

[K1SB_X K2]: output gain increased by 1 dB

[5XT]: optimized limiter settings

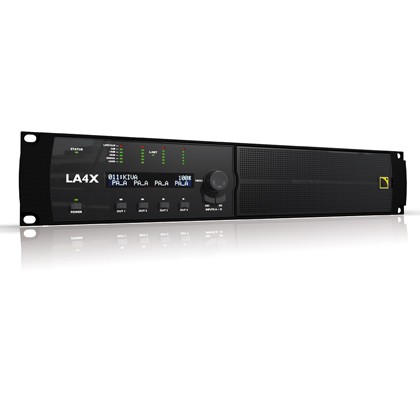

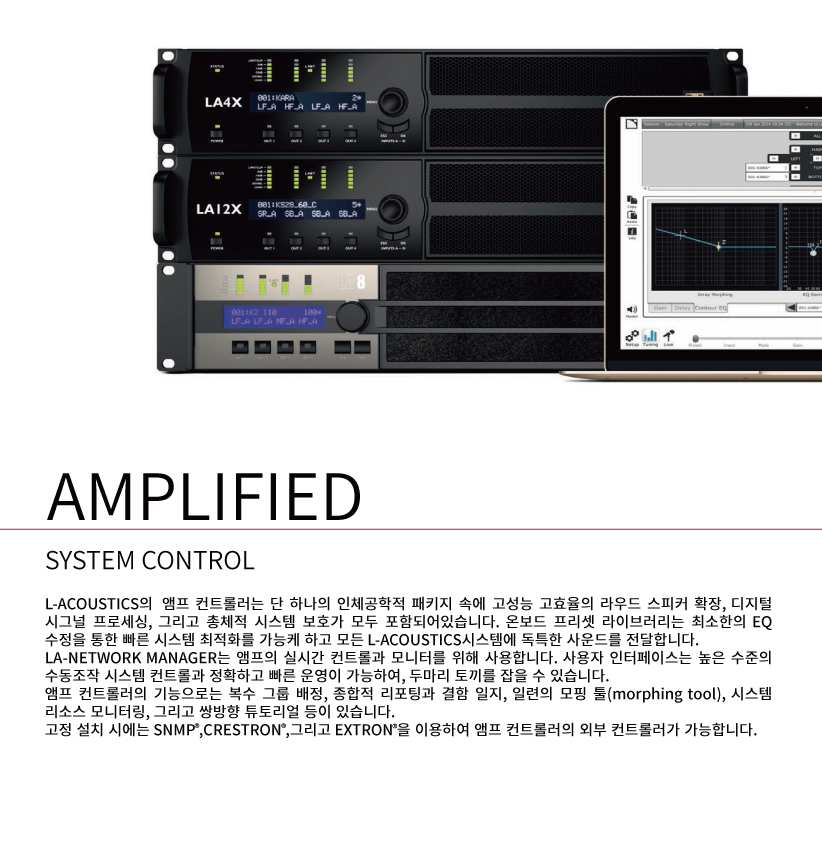

At the heart of the L-ACOUSTICS® integrated system approach, the LA4X and LA8 amplified controllers offer high performance loudspeaker amplification, DSP, network control and comprehensive system protection in a single ergonomic package. On-board library presets have been developed for immediate use with a minimum of EQ correction, optimized system resources and a unique sonic signature for all systems, a feature particularly beneficial for complex installations.

Based upon a 4x4 (LA4X) and a 2x4 (LA8) platform, the exceptional and groundbreaking performance level delivered by both the LA4X and LA8 allows for full optimization of all L-ACOUSTICS® system resources and delivers outstanding audio quality combined with the best possible transducer protection. LA Network Manager with its intuitive user interface provides a high level of hands-on system control without sacrificing accurate and fast operation under real-world conditions. For fixed installation, external control of the amplified controllers is possible from AMX®, EXTRON® and CRESTRON® panels.

RENTAL BENEFITS

High performance and dynamic range for live applications

LA-RAK universal drive platform for the Rental Network

Consistent performance between systems worldwide

Lightweight and compact package for easy storage and transportation

Advanced management of resources for protection and safe operation

Powerful and quick system EQ and calibration tools without external processors

Full digital signal chain with AES/EBU inputs

 PERMANENT INSTALLATION BENEFITS

Hybrid presets for power resource optimization

Real-time monitoring of system status via LA Network Manager

High efficiency design (low power consumption and less heat in equipment room)

Compact design for higher amplifier density

External control options in a Network environment (AMX® - EXTRON® - CRESTRON® Integrated Partner)

Full digital signal chain with AES/EBU inputs

• LA4X-SPEC.pdf

• LA4X-USER MANUAL.pdf

• LA4X -CAD FILES.zip
