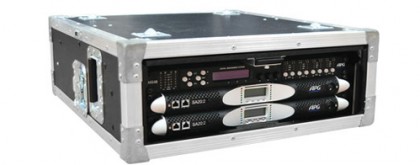

In a modular portable 3U fly case, it offers 4-in / 4 DSP modules / 4 powered outputs.

Composed of:

• 1x TFC3U:  modular 3U high quality fly case, with sliding doors, mechanical connection system for joining several stacked racks.


• 1x DMS48: digital processor 8 outputs 4 inputs


• 2x SA30: 2: Power Amplifiers 1400 W / 8 ohm 2600 w / 4 ohms per channel


• 1x CP3U: rear connector plate 3U, including:
  4x XLR F analog inputs and AES3,
  4x XLR M link out,
  4x XLR M processed outputs 5-8
  2x RJ45 ports "NET AUDIO" to map Dante network connectivity option
  1x port RJ45 "NET" for remote Ethernet 10 / 100M
  1x port RJ45 "AUX" not wired (for optional GPI, integrated switch, remote amplifiers etc.)
  4x amplified outputs 1-4 on Speakon^TM NL4 and NL8

The back plate prevents changes to the internal wiring.

These racks are delivered assembled, wired and tested with power 2x Powercon 16A / PC16A.

They are compatible in dimension and fastening with the TOURACK and TFCWB.
