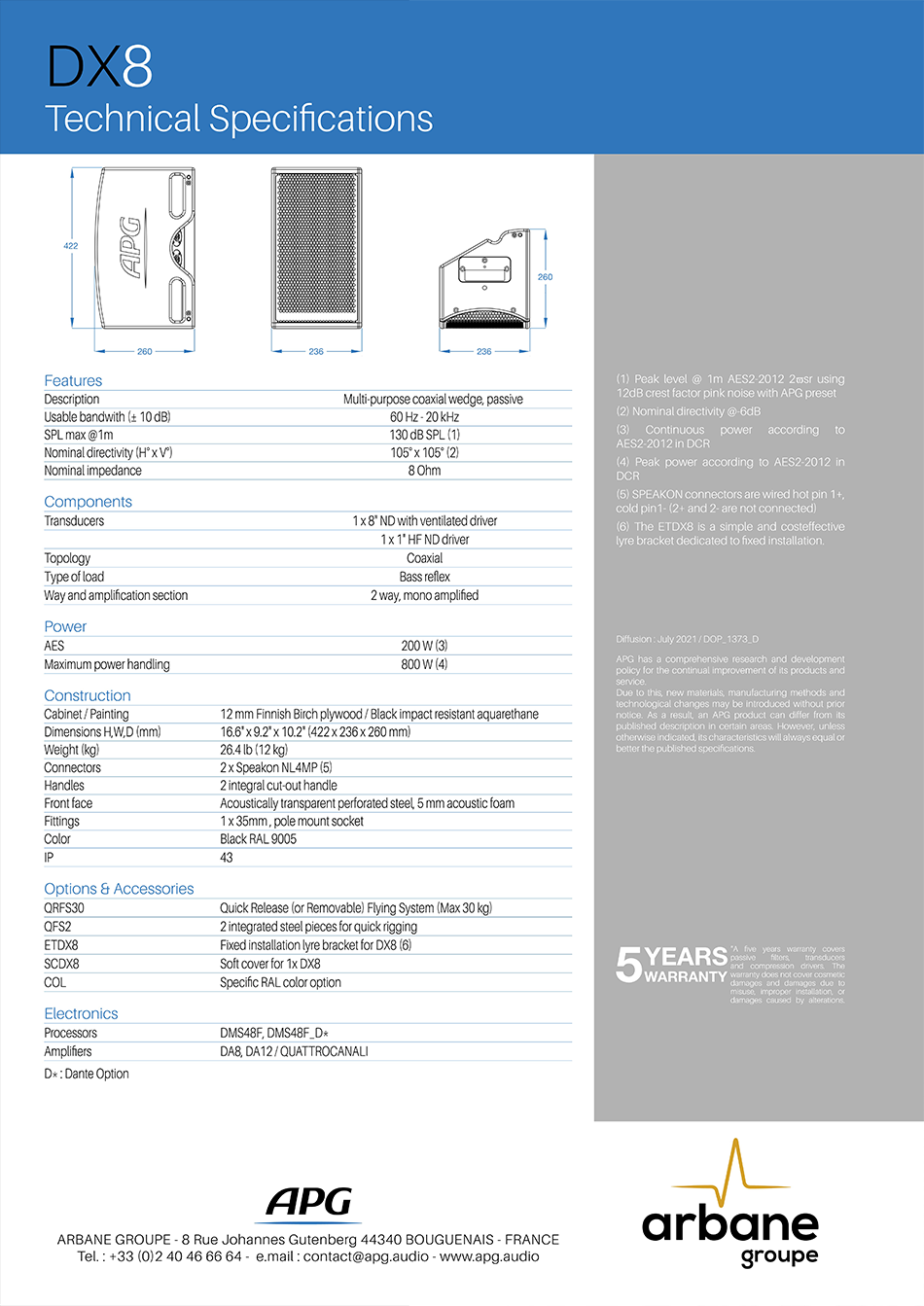

Acoustic way / Mode Transducer (Ø coil) | 2 way / mono amp 1x8" (2") 1 x HF 1" (1.75") |
Bandwidth@ -3dB Directivity @ -6dB | 60Hz – 19kHz* 105° conical |
Nominal Impedance Power AES Recommanded amplification | 8 Ohm 200 W 100 to 400 W |
Efficiency dB SPL @1W/1m Continuous dB SPL level @1m dB SPL max level @1m | 97 118 124 |
Dimensions (H, W, D) Weight | 422 x 236 x 262 mm 12 kg |
