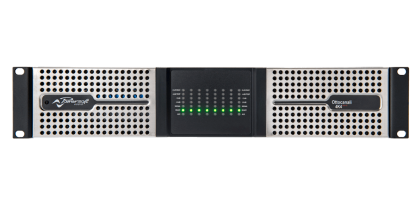

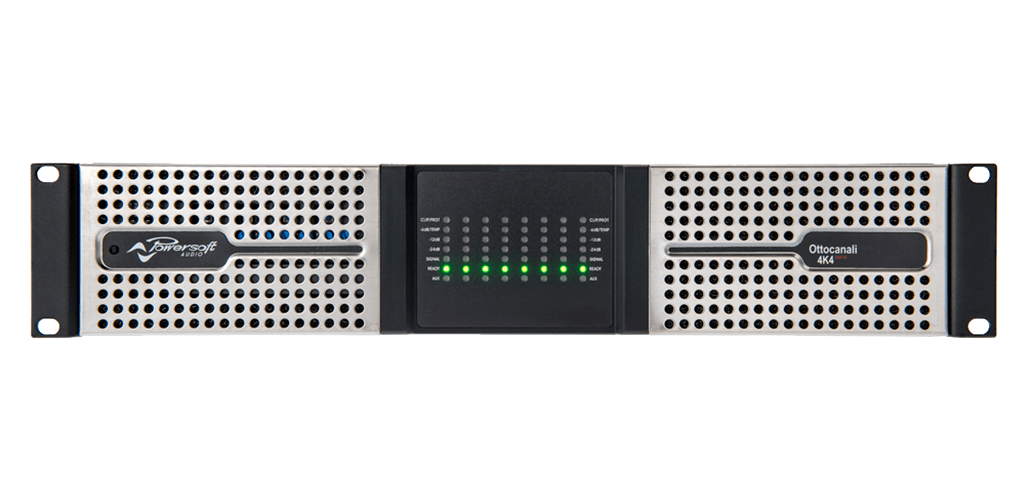

8 channels class D power amplifier
Ottocanali 4K4는 SA250 – SA400에서는 6채널로, 서브우퍼가 있는 Step-Array시리즈에서는 8채널로 사용합니다.
Audio data
Power
8x250W / 8Ω
Bridged power
8x1000W / 8Ω
Input impedance
20kΩ balanced
32dB - 1.2Vrms
Harmonic distortion
<0.08% from 0,1 W to full power (typically <0,05%)
Electrical data
Mains
100-240 V ±10%, 50-60 Hz
Input connectors
2 x 12 pin Phoenix MC 1.5/12-ST-3.81 1 x RJ 45 (with DANTE option)
Output connectors
2 x 8 pin Phoenix DFK-PC 4/8-G-7.62
Mechanical data
Dimensions (WxPxH)
483mm x 89mm x 360mm
Net / shipping weight
14kg / 15.5kg
