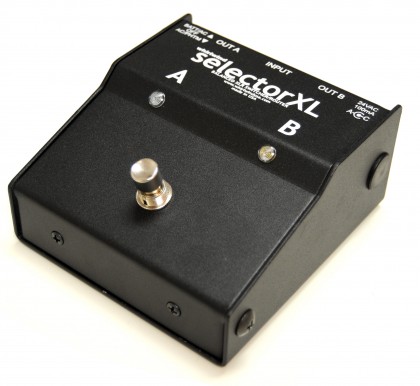

This handy, foot-switchable box allows users of in-ear monitors to turn off the microphone signal to the front of house PA system and communicate privately with other band members or the monitor engineer through a second output. It also has many other possible uses for temporarily muting or switching a mic signal. The footswitch can be silently operated in several modes, with either momentary or alternate (push on, push off) action, by configuring the internal mode selection dipswitches. It can be used with both dynamic and condenser mics.

Unit runs on a 9V battery or 24VAC power supply (included). SELXL

- Silent A/B switching at mic levels thru both XLR outputs

- Advanced circuitry eliminates popping, noise and level changes

- Dipswitches provide full configuration of switching modes

- Outputs are protected from external Phantom power

- Full 48VDC phantom power to input jack

- PS24AC wall power supply included (required for Phantom power)

- Bright LEDs indicate output ON status

- Heavy-duty steel enclosure

- Easy access for battery replacement

- 3 year warranty

• Selector XL-manual.pdf
