APG
APG는 혁신적인 신제품 개발과 글로벌 전략으로 professional loudspeaker의 높은 품질과 탁월한 사운드에 집중해왔습니다. 40여년 동안 음향 및 전자기기 부문에서 높은 수준의 창조와 성취를 이루어내며 APG만의 독자성을 제공하고 있습니다.

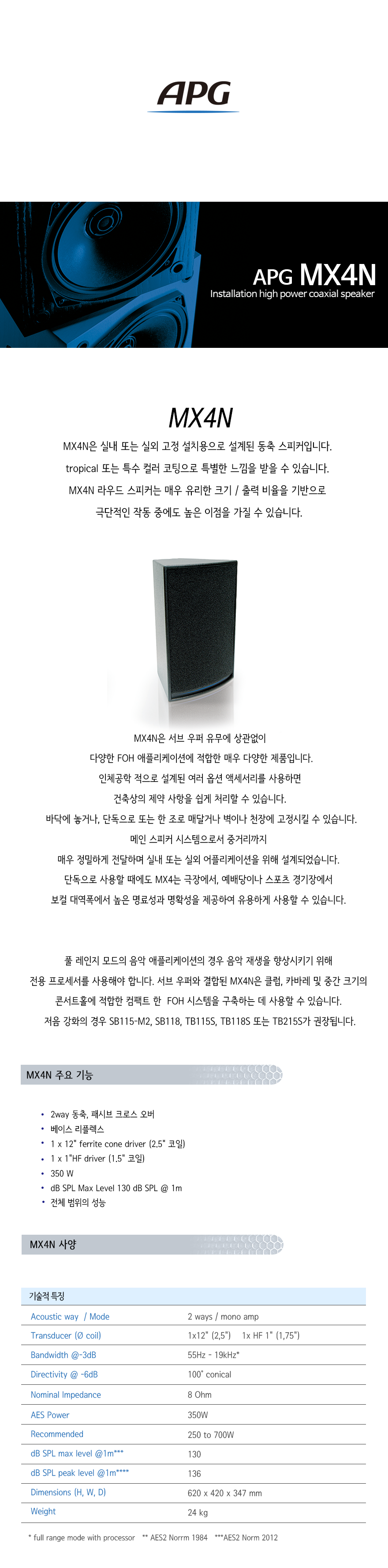

Installation high power coaxial speaker
2-way coaxial, passive crossoverBass reflex1 x 12" ferrite cone driver (2,5" voice coil)1 x 1" HF driver (1,5 voice coil)
Acoustic way / Mode Transducer (Ø coil)
2 way / mono amp 1x8" (2,5") 1x HF 1" (1,75")
Bandwidth @ -3dB Directivity @ -6dB
55Hz - 19kHz* 100° conical
Nominal Impedance Power AES Recommanded amplification
8 Ohm 350W 250 to 700W
Efficiency dB SPL @1W/1m Continuous dB SPL level @1m dB SPL max level @1m
98 124 130
Dimensions (H, W, D) Weight
620 x 420 x 347 mm 24 kg
* full range mode with processor
DMS26
Digital Processor, 2in/6out, first level control
DMS48
Advanced Digital Management System Processor 4in/8out, full control
