Usable bandwidth (-10dB)

 80 - 20k Hz "Line Source" configuration

 Nominal directivity (-6dB)

 Horizontal: 100° Symmetric (500 - 18k Hz)

 Vertical: Depends on number of elements and line source curvature,

 between 0° and 15° inter-element angles

 Maximum SPL

 130 dB ([KIVA] preset)

 Long term RMS handling capacity

 120 W

 Components

 LF: 2 x 6.5’’ weather-resistant

​ HF: 1 x 1.5’’ diaphragm compression driver

 ​Nominal impedance: 8 ohms

 Rigging

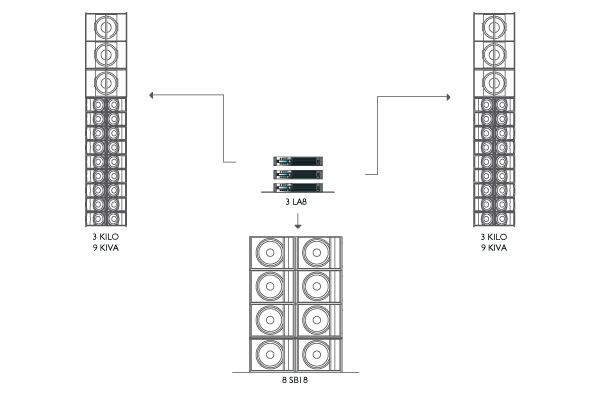

 Entirely captive, high-grade steel certified for 20 KIVA or 12 KIVA and 4 KILO

​ Angle increments: 0, 1, 2, 3, 4, 5, 7.5, 10, 12.5, 15°

 Physical data

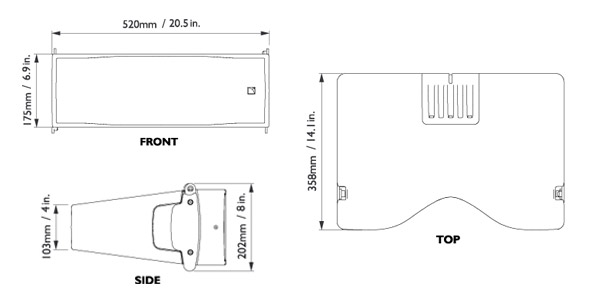

 W x H/h x D: 520 x 175/103 x 358 mm - 20.5 x 6.9/4 x 14.1 in

 Weight (net): 13kg - 28.7 lb

 Connectors: 2 x 4-pin Speakon

 Material: sandwich composite structure, zamac and steel

 Finish: grayish-brown, RAL 8019®

 Front: plastic grill, acoustically neutral "Airnet"grill cloth

 Rigging: integrated flying hardware and handles (sandblast-coated steel)

 Drawings
