L-ACOUSTICS
사업초기부터 혁신과 과학적인 접근은 L-Acoustics의 경영철학이었습니다. 물리학과 기초음향 이론에 깊이 뿌리를 두고 WST 기술논문들과 전설적인 V-DOSC 라인어레이 시스템을 개발한 뒤 그 명성이 널리 알려졌습니다. 특히 음향에 관한 연구의 폭을 확대하여 구조적인 엔지니어링과 디지털네트워킹 개발등 연구결과물을 출판 발행 함으로써 많은 오디오 제조업체 중 가장 존경 받는 회사로 정평이 나 있습니다.
Ellipsoid directivity of 90° x 60° for FOH
Shape, size and RAL color for easy integration
Low weight and ergonomics for handling
Complete range of rigging accessories
Passive design, optimized amplified controller quantum

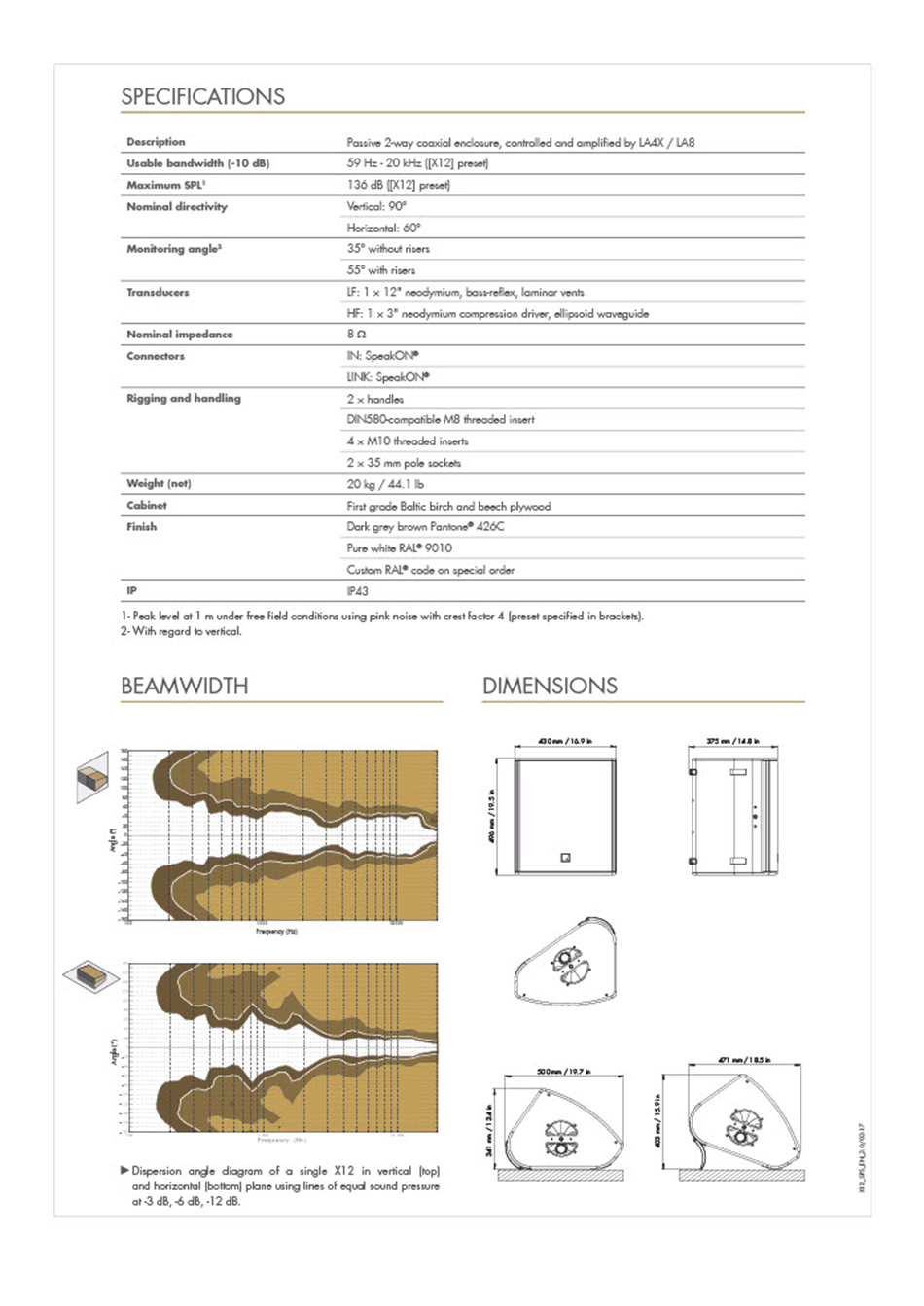

Description
Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
Usable bandwidth (-10 dB)
59 Hz - 20 kHz ([X12] preset)
Maximum SPL1
134 dB ([X12] preset)
Nominal directivity
Vertical: 90°
Horizontal: 60°
Monitoring angle2
35° without risers
55° with risers
Transducers
LF: 1 × 12" neodymium, bass-reflex, laminar vents
HF: 1 × 3" neodymium compression driver, ellipsoid waveguide
Nominal impedance
8 Ω
Connectors
IN: SpeakON®
LINK: SpeakON®
Rigging and handling
2 × handles
DIN580-compatible M8 threaded insert
4 × M10 threaded inserts
2 × 35 mm pole sockets
Weight (net)
20 kg / 44.1 lb
Cabinet
First grade Baltic birch and beech plywood
Finish
Dark grey brown Pantone® 426C
Pure white RAL® 9010
Custom RAL® code on special order
IP
IP43
1- Peak level at 1 m under free field conditions using 10 dB crest factor pink noise with preset specified in brackets. 2- With regard to vertical.
