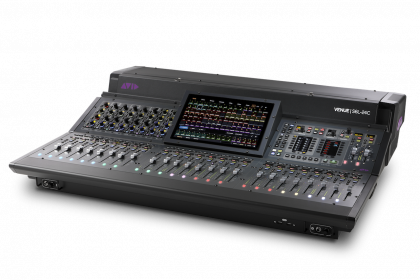

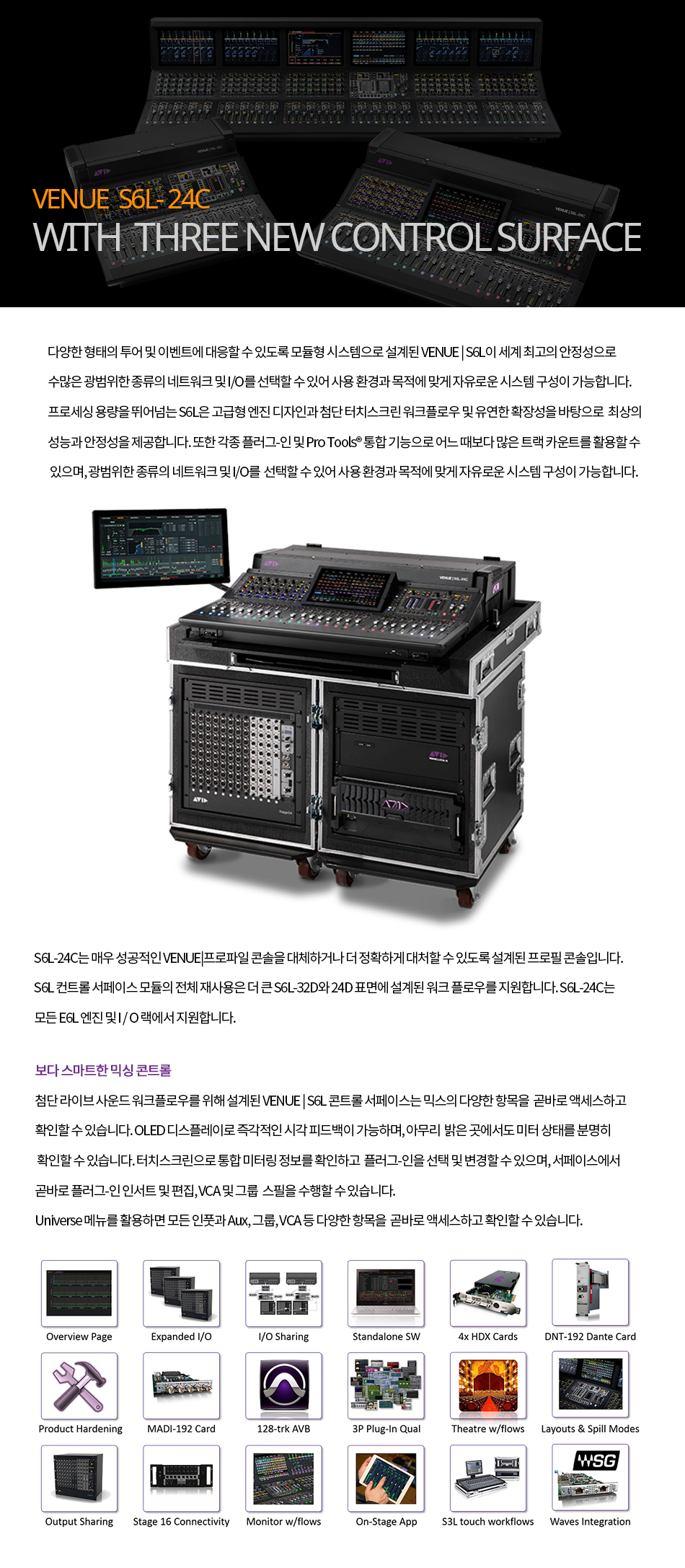

S6L-24C

 12-inch daylight-visible

 touchscreens

 1 Master Touchscreen

 Faders

 24 + 2

 Knob Modules with high- resolution OLEDs and

tri-color function indicators

 32 assignable knobs across 1 Channel Knob Module

 Master Live Module

 Graphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders;

 monitoring, layout and snapshot controls; transport controls and function buttons

 Metering

 30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator,

 Expander/Gate status and Compressor/Limiter gain reduction meters

 Analog inputs

 8 XLR mic/line inputs with 48V and signal present LEDs

 Analog outputs

 8 XLR outputs with mute and signal present LEDs

 Digital inputs

 4 pairs of XLR stereo AES/EBU (8 channels total)

 Digital outputs

 4 pairs of XLR stereo AES/EBU (8 channels total)

 Headphone outputs

 2 independent 1/4" TRS stereo headphone jacks

 Ancillary I/O

 DVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitch, Linear Time Code input, MIDI I/O

 Ethernet AVB ports

 2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology

 Power supply

 Dual redundant, internal

 Height (front, rear)

 3.6, 8 inches (91, 205 mm)

 Width

 38.9 inches (989 mm)

 Depth

 31 inches (787 mm)

 Weight

 Coming soon

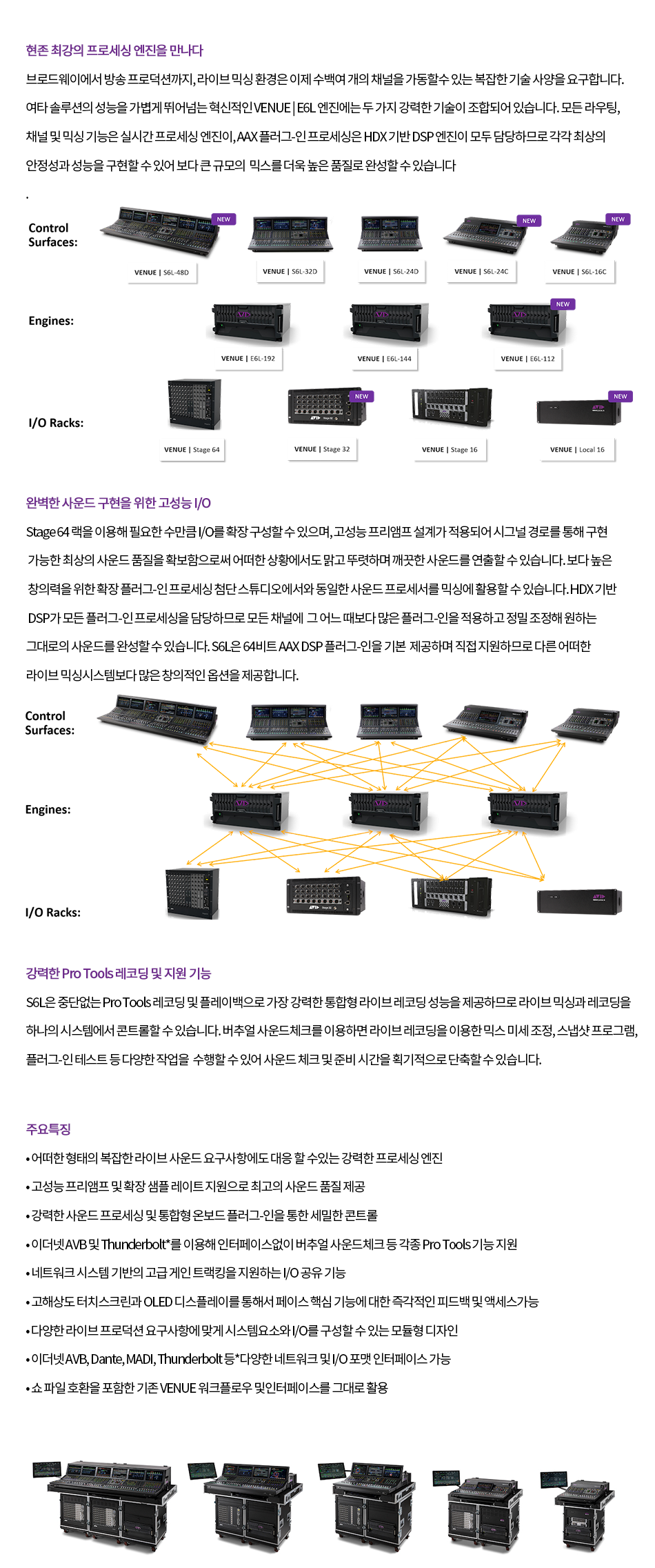

 ENGINE

 E6L-192

 E6L-144

 E6L-112

 Sample rates

96 kHz

 Input channels

 192

144

112

 Input processing

HPF, LPF, 4-band PEQ, Expander/Gate, Compressor/Limiter, Delay, 4 plug-in inserts,

hardware insert

 Mix busses

96 + LCR

64 + LCR

48 + LCR

 Output processing

7-band PEQ, Compressor/Limiter, Delay, 4 plug-in inserts, hardware insert

 Matrix

 24 x 24

 VCAs

 32

24

 Stereo solo busses

2, with independent control

 Graphic EQs (31-band)

32

 Digital signal processing

 Supports up to four HDX-192 DSP Expansion Cards for plug-in processing; includes one card

Supports up to four HDX-192 DSP Expansion Cards for plug-in processing; includes one card

Supports up to four HDX-192 DSP Expansion Cards for plug-in processing; includes one card

 Plug-in support

64-bit AAX DSP; also supports Waves SoundGrid systems through

theWSG-HD Option Card  for full integration with S6L, or over MADI

 Plug-in slots

 200

125

100

 Pro Tools integration

Record/play back up to 128 audio tracks via Ethernet AVB

Expansion Option Card slots

 4 max

2 max

 Ethernet AVB ports

Includes one AVB-192 Ethernet AVB Network Card with two ports (up to two AVB cards supported), selectable as etherCON (copper) or SFP (fiber), with redundant ring topology

I/O sharing

Supports up to three Stage 64 and four Stage 16 racks, up to 192 inputs total (requires two AVB-192 Ethernet AVB Network Cards to share I/O)

 Word Clock I/O

Clock I/O BNC, 75 Ohm coaxial

 USB ports

5 USB 2.0 ports (2 front, 2 back, 1 internal)

 Power supply

N+1 redundant, internal hot-swappable PSUs

Dimensions (H x W x D)

8.6 x 16.9 x 19 inches (218 x 430 x 483 mm)

Rack spaces

 5U

 Weight

74 lbs (33 kg)

I/O

STAGE 64

STAGE 16

Maximum I/O

64 input channels,

 32 output channels

@ 96 kHz with one Stage 64 rack; up to 192 inputs/96 outputs supported (depending on the E6L engine in use) with three Stage 64 racks (64 ins/32 outs each)

 Total of 32 input/output channels @ 96 kHz with one Stage 32 rack

  16 XLR mic inputs/preamps, 8 XLR line outputs, 4 channels of AES3 output

  16 XLR mic inputs/preamps, 8 XLR line outputs, 4 channels of AES3 output

I/O card slots

 12

4

 n/a

 n/a

Sample rates

 96 kHz

96 kHz

96 kHz

96 kHz

 Ethernet AVB ports

2, selectable as etherCON (copper) or SFP (fiber),

with redundant ring topology

2 Gigabit Ethernet AVB ports

Maximum cable length

 Copper: 100 meters (328 feet);

 Fiber: 500 meters (1,640.4 feet)

100 meters (328 feet)

 MADI

 Dual MADI output offers

direct split of all 64 inputs

Single MADI output offers direct split of up to 32 inputs

 n/a

 n/a

Headphone confidence

monitor

1/4" TRS stereo headphone jack with volume control;

display for channel

selection

n/a

n/a

n/a

 Word Clock I/O

 BNC, 75 Ohm coaxial

n/a

n/a

n/a

 Power supply

 Dual redundant internal PSUs

Single internal PSU

Dual redundant internal

 PSUs

Dimensions (H x W x D)

17.5 x 17 x 12.2 inches

 (445 x 432 x 310 mm)

 Coming soon

 6.9 x 19 x 8.1 inches (175 x 483 x 206 mm) with ears/handles out (rackmount configuration)

5.2 x 17.4 x 11.0 inches (132 x 442 x 278 mm)

 Rack spaces

 10U

5U

4U

3U

Weight

69 lbs (31 kg)

15.8 lbs (7.1 kg)
