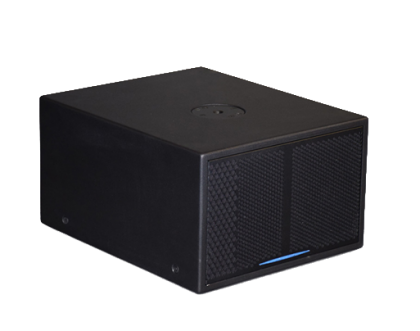

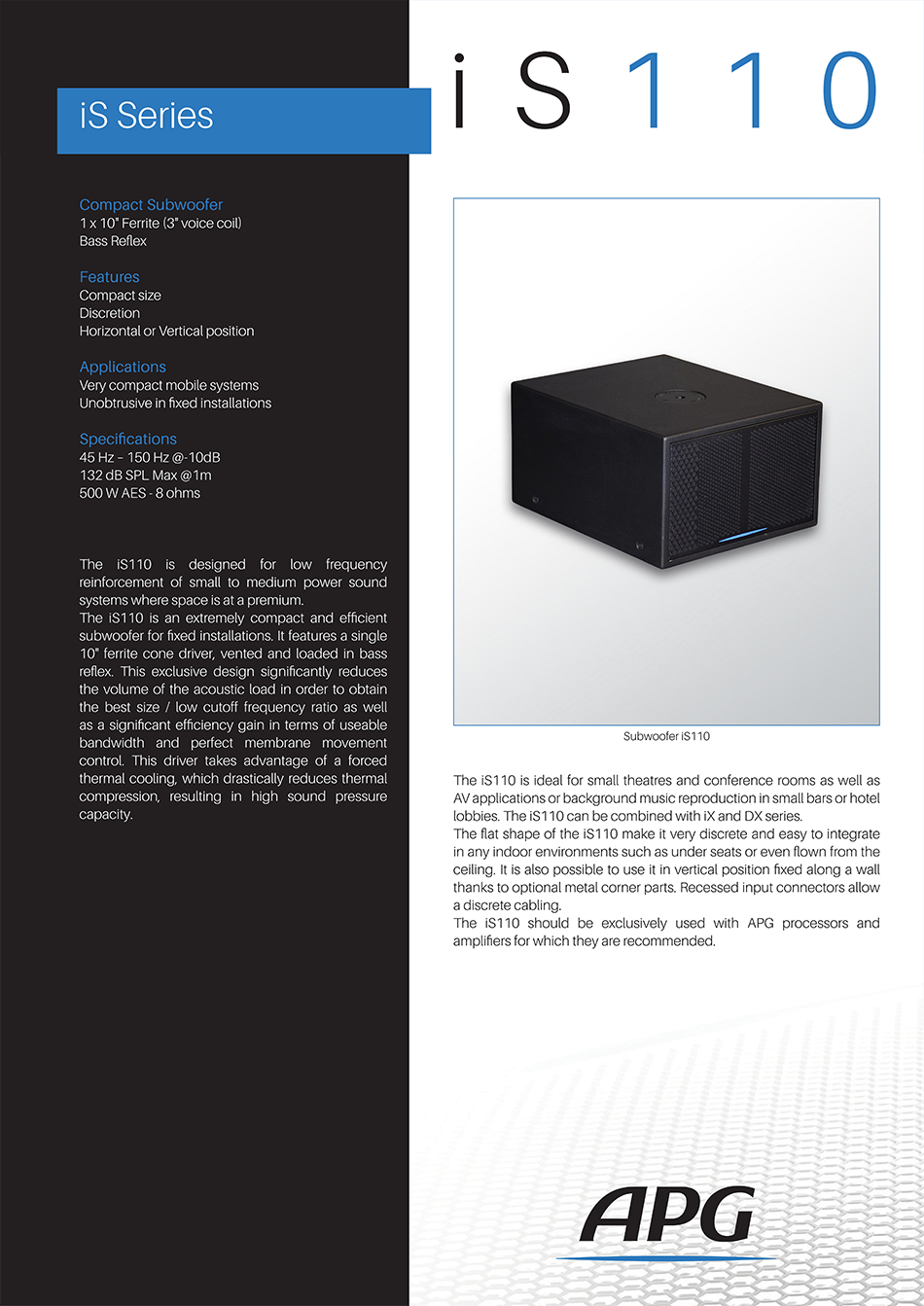

10인치 네오디뮴 드라이버 1개가 장착되어 있으며 리플렉션방식의 설계는 대역폭과 제어 측면에서 상당한 효율과 최적화
된 크기와 낮은 컷오프 주파수 비율을 얻을 수 있습니다.

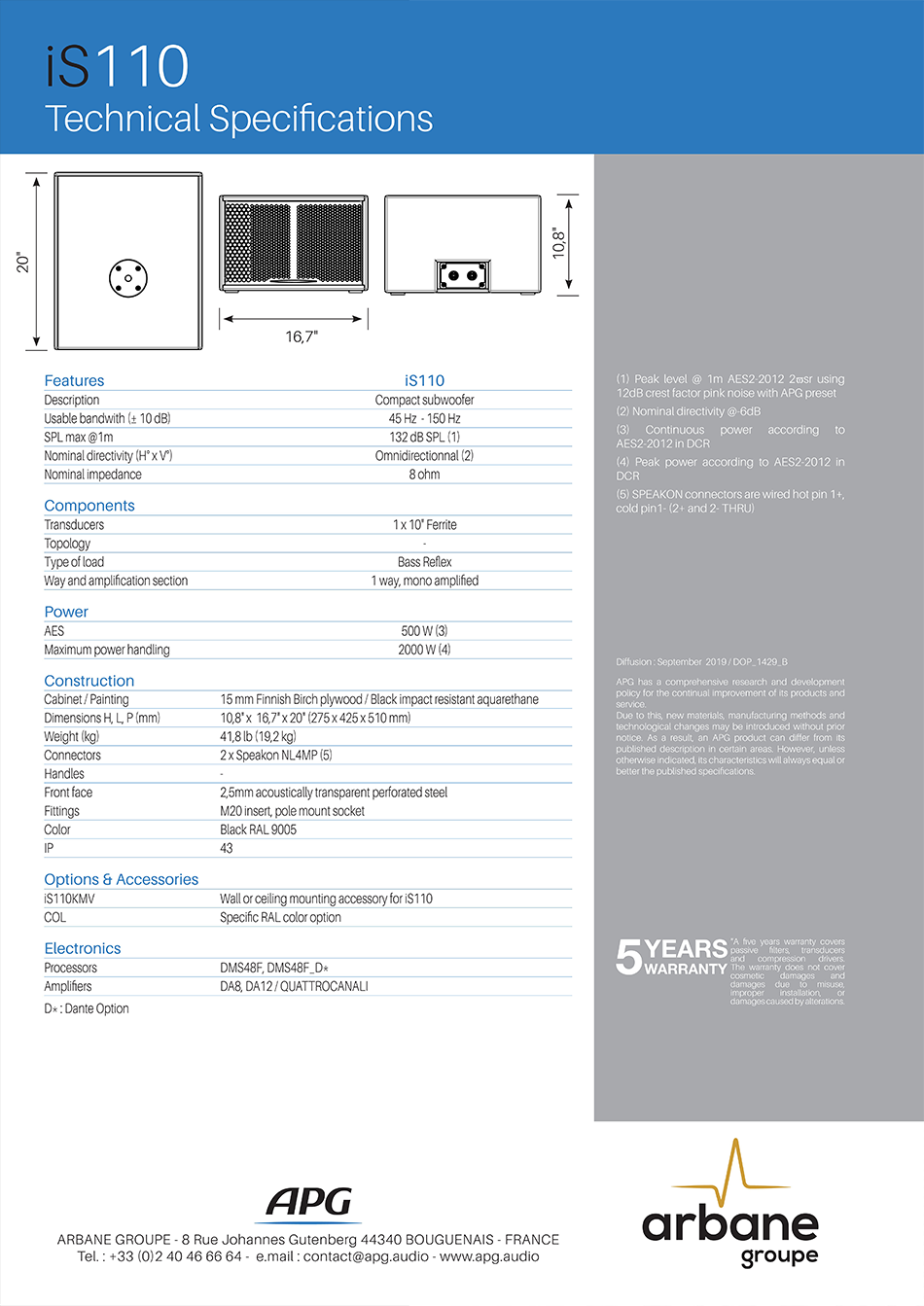

Technical features
Usable bandwidth
(± 10 dB)
SPL max @ 1m
Nominal directivity (H° x V°)
Nominal impedance
45 Hz - 150 Hz
132 dB SPL (1)
Omnidirectionnal (2)
8 ohm
Transducers
Topology
Type of load
Way and amplification section
1 x 10'' Ferrite
-
Bass Reflex
1 way, mono amplified
AES power (W)
Maximum power handling (W)
500 W (3)
2000 W (4)
Dimensions H,W,D (mm)
Weight (kg)
Connectors
IP
10,8" x 16,7" x 20" (275 x 425 x 510 mm)
41,8 lb (19,2 kg)
2 x Speakon NL4MP (5)
43
(1) Peak level @ 1m, 2πsr using 12dB crest factor pink noise with APG preset (2) Nominal directivity @-6dB (3) Continuous power according to AES2-2012 in DCR (4) Peak power according to AES2-2012 in DCR (5) SPEAKON connectors are wired hot pin 1+, cold pin1- (2+ and 2- THRU)
Accessories & Options
iS110KMV
Wall or ceiling mounting accessory for iS110
Electronics
DMS48F
Digital processor, 4 inputs /8 outputs (DMS48F-D, DANTE version)
