Usable bandwidth

 (-10dB)

 55 Hz - 20 kHz ([KARA] preset)

 Nominal Directivity

 (vertical line source)

 (-6dB)

 Horizontal: 110° symmetric

 Vertical: Dependent upon number of elements

 and line source curvature

 Maximum SPL

 139 dB ([KARA] preset)

 RMS handling capacity

 LF: 450 W

 HF: 80 W

 Components

 LF: 2 x 8’’ neodymium weather-resistant

 HF: 1 x 3’’ neodymium diaphragm compression driver

 Nominal impedance: LF = 8 ohms, HF = 8 ohms

 Rigging

 Steel, certified for: 24 KARA (BGV-C1 compliant)

 Angle increments: 0, 1, 2, 3, 4, 5, 7.5, 10°

 Physical data

 W x H/h x D: 730 x 250/164 x 482 mm - 27.7 x 9.8/6.4 x 19 in

 Weight (net): 26 kg 57.2 lbs

 Connectors: 2 x 4-point Speakon®

 Material: baltic birch plywood

 Finish: Grey-brown, RAL 8019®

 Front: polyester powder-coated steel grill, airnet® acoustically neutral fabric

 Rigging: steel with dual coating zinc and polyester powder

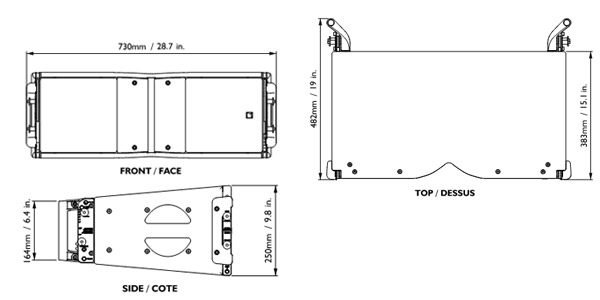

 Drawings

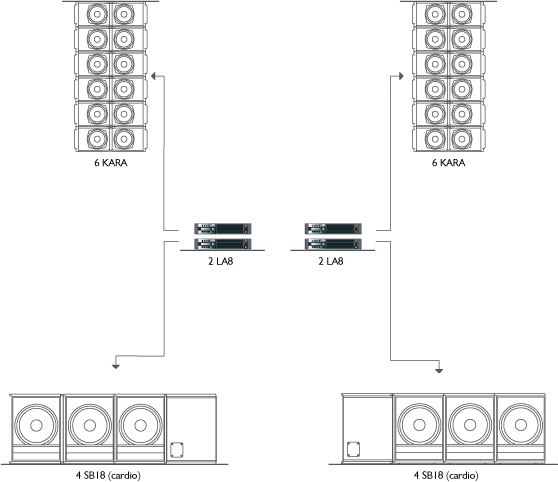

 12 KARA FOH SYSTEM

 STANDARD

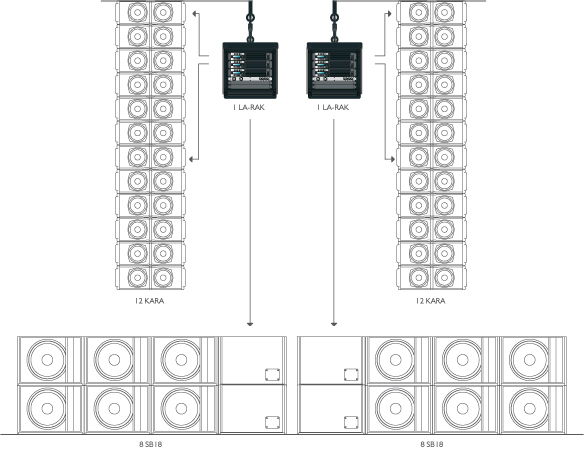

 12 KARA FOH SYSTEM

BOOSTED

 18 KARA FOH SYSTEM

STANDARD

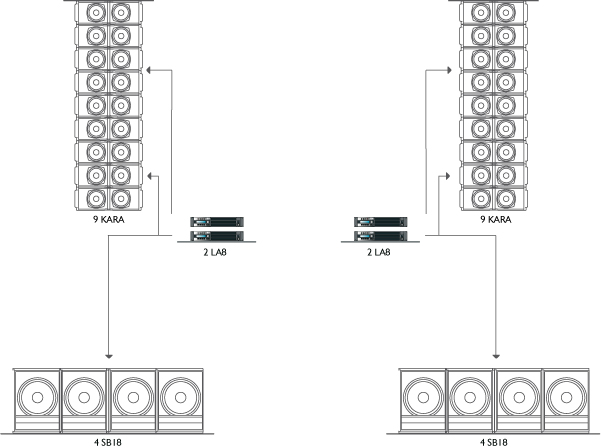

 24 KARA FOH SYSTEM

  BOOSTED
