Directional characteristics

 Omnidirectional

 Principle of operation

 Pressure

 Cartridge type

 Pre-polarized condenser

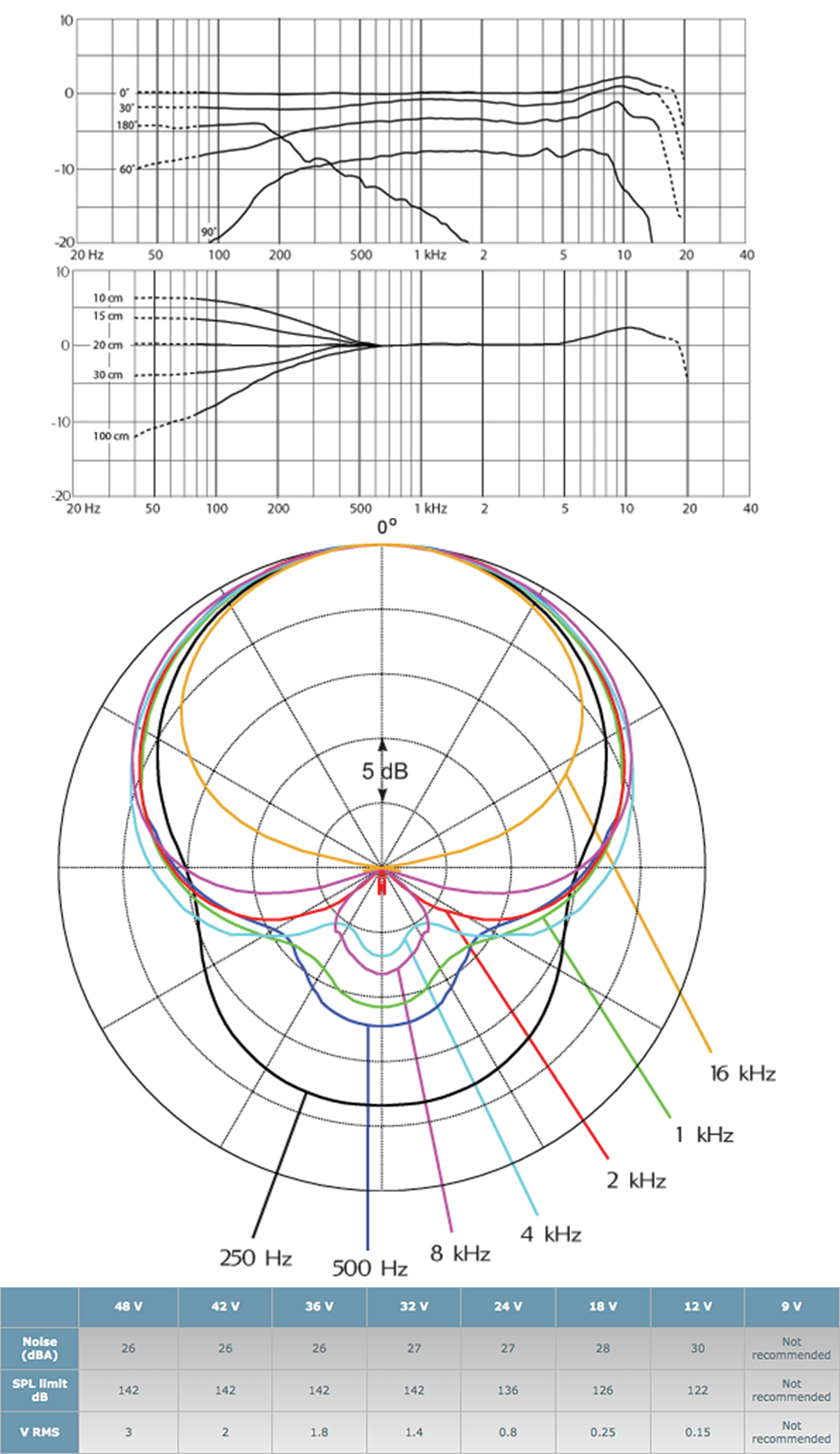

 Frequency range, ± 2 dB

 20 Hz ? 20 kHz

 Sensitivity, nominal ±3 dB at 1 kHz

 20 mV/Pa; -34 dB re. 1 V/Pa

 Equivalent noise level, A-weighted

 Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

 Equivalent noise level, ITU-R BS.468-4

 Typ. 35 dB (max. 38 dB)

 S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

 71 dB(A)

 Total harmonic distortion (THD)

 < 1 % up to 123 dB SPL peak

 Dynamic range

 Typ. 100 dB

 Max. SPL, peak before clipping

 134 dB

 Output impedance

 < 40 ohm

 Cable drive capability

 Up to 300 m (984 ft)

 Output balance principle

 Impedance balanced

 Common Mode Rejection Ratio (CMRR)

 > 40 dB

 Power supply

 48 V Phantom power ± 4 V

 Current consumption

 2 mA

 Connector

 3-pin XLR-M

 Color

 Black

 Microphone weight

 38 g (1.34 oz)

 Microphone diameter

 19 mm; at tip: 6.7 mm (0.75 in; at tip: 0.26 in)

 Capsule diameter

 5.4 mm (0.21 in)

 Microphone length

 122 mm (4.8 in)

 Polarity

 Positively increasing sound pressure produces positive going voltage

 at pin 2

 Temperature range

 -40 °C to 45 °C (14 °F to 113 °F)

 Relative humidity (RH)

 Up to 90 %
