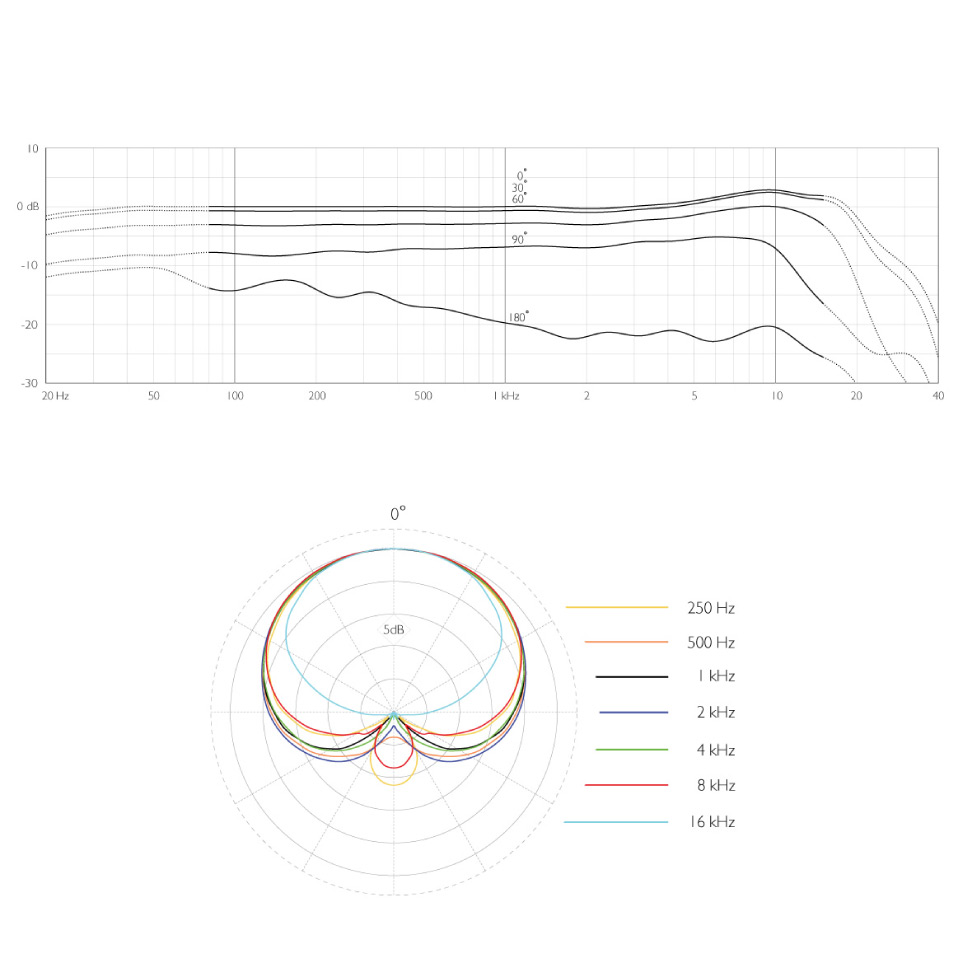

Directional pattern | Supercardioid |
Directional pattern | Up to 90% |
Principle of operation | Pressure gradient |
Cartridge type | Pre-polarized condenser |
Frequency range | 20 Hz - 20 kHz |
Frequency range, ±2 dB, 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 71 dB(A) |
Total harmonic distortion (THD) | < 1% up to 123 dB SPL peak |
Dynamic range | Typ. 100 dB |
Max. SPL, peak before clipping | 142 dB |
Output impedance | From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω |
Cable drive capability | Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter |
Output balance principle | Signal balanced with DAD4099 or DAD6001-BC XLR Adapter |
Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter |
Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter |
Connector | MicroDot |
Color | Black |
Weight | 46 g (1.62 oz) |
Microphone diameter | 5.4 mm (0.21 in) |
Microphone length | 45 mm (1.8 in) |
Cable length | 1.8 m (5.9 ft) |
Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter) |
Temperature range | -40°C to 45°C (-40°F to 113°F) |
Gooseneck length | 140 mm (5.5 in) |
